The cup-and-blade connection enables fast, tool-free assembly and dismantling, reducing labor costs significantly.
A simplified modular design requires fewer parts, lowering transportation, storage, and on-site handling expenses.
Made of Q235 or Q345 steel, each vertical standard delivers strong support, ideal for heavy-duty applications.
Easily adapts to façade work, slab support, bridge construction, and industrial maintenance platforms.
Rigid joints and stable geometry enhance safety and reliability on multi-level scaffold structures.
Long-lasting corrosion resistance ensures the system performs reliably in harsh weather conditions.
Conforms to EN12810, BS1139, and other international scaffolding safety standards.
| Description | Explanation | |
|---|---|---|
| Product | cuplock scaffolding | |
| Type | Cuplock rod | Horizontal Rod |
| Size | 600-3000mm | 600-1500mm |
| Wall thickness | 3.5mm/3.25mm | 3.25mm/2.75mm |
| Standard | EN 12810 / 12811 / BS1139 | |
| Surface treatment | Hot-dip galvanizing / Electro-galvanizing / Spray painting | |
| Application | Construction engineering, Bridges and transportation, industry and energy, etc | |

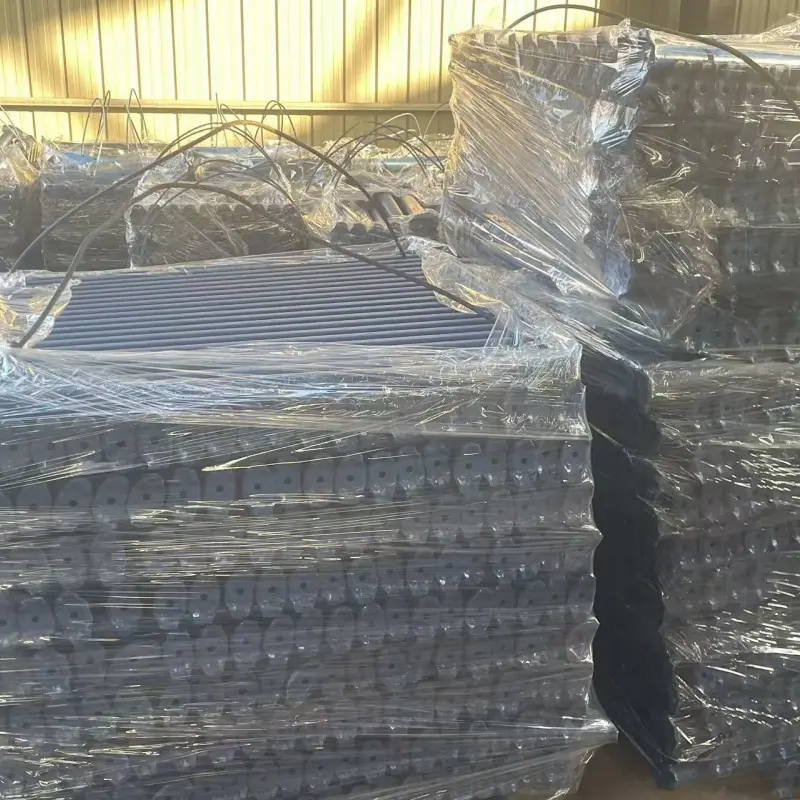

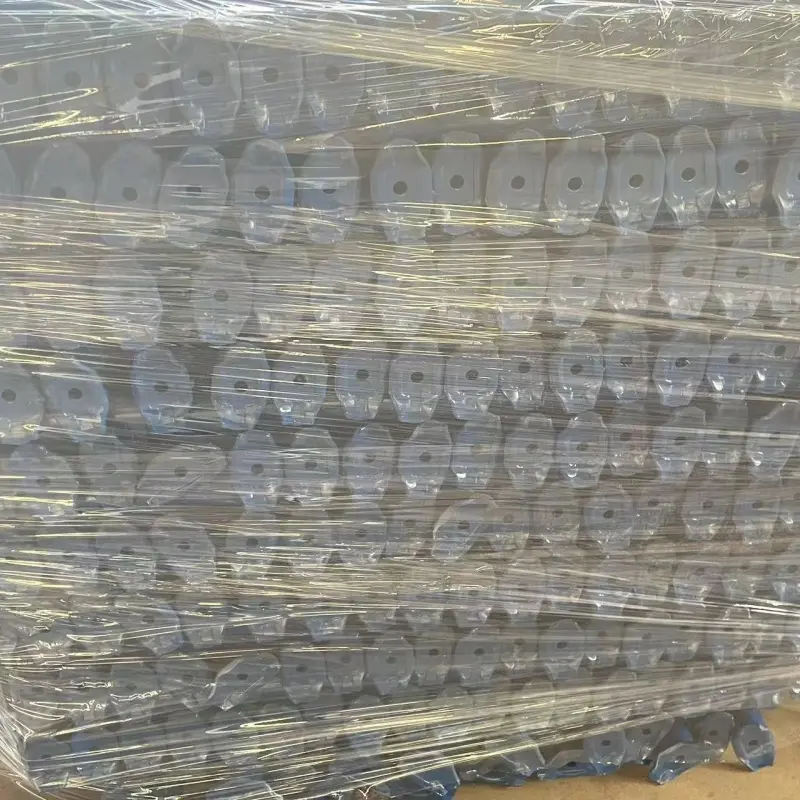

| Packaging | Steel Pallet, Plastic-Wrapped Bundles, Or package as per the customer's requirements | |
| Delivery time | 30 to 45 days from the date of drawing confirmation. | |
| Payment Terms | T/T or L/C at sight | |
The Cuplock Scaffolding System is built with sustainability in mind. Manufactured from high-strength steel and finished with hot-dip galvanization, each component is designed for long-term, repeated use across dozens—even hundreds—of projects.
Its modular structure allows for efficient disassembly and compact storage, reducing material waste on-site. Compared to traditional scaffolding methods, Cuplock generates less construction debris and has a longer product lifecycle, helping contractors meet green building goals.
By choosing Cuplock, you're not only reducing project costs—you’re also minimizing your environmental footprint.
→ Durable. Reusable. Responsible.
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Number of Roots / Ton | Meters / Ton | Surface Treatment |
|---|---|---|---|---|---|---|---|
| 600 | 3.5 | Q355 | 48 | 3.69 | 271 | 192 | Hot-dip galvanizing 120μm |
| 900 | 3.5 | Q355 | 48 | 4.92 | 203 | 203 | Hot-dip galvanizing 120μm |
| 1200 | 3.5 | Q355 | 48 | 6.85 | 146 | 190 | Hot-dip galvanizing 120μm |
| 1500 | 3.5 | Q355 | 48 | 8.78 | 114 | 183 | Hot-dip galvanizing 120μm |
| 1800 | 3.5 | Q355 | 48 | 9.95 | 100 | 190 | Hot-dip galvanizing 120μm |
| 2100 | 3.5 | Q355 | 48 | 11.08 | 90 | 198 | Hot-dip galvanizing 120μm |
| 2400 | 3.5 | Q355 | 48 | 13.05 | 76 | 190 | Hot-dip galvanizing 120μm |
| 3000 | 3.5 | Q355 | 48 | 16.15 | 62 | 192 | Hot-dip galvanizing 120μm |
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Number of Roots / Ton | Meters / Ton | Surface Treatment |
|---|---|---|---|---|---|---|---|
| 600 | 3.25 | Q355 | 48 | 3.51 | 284 | 284 | Hot-dip galvanizing 120μm |
| 900 | 3.25 | Q355 | 48 | 4.56 | 219 | 219 | Hot-dip galvanizing 120μm |
| 1200 | 3.25 | Q355 | 48 | 6.37 | 157 | 157 | Hot-dip galvanizing 120μm |
| 1500 | 3.25 | Q355 | 48 | 7.42 | 135 | 135 | Hot-dip galvanizing 120μm |
| 1800 | 3.25 | Q355 | 48 | 9.23 | 108 | 108 | Hot-dip galvanizing 120μm |
| 2100 | 3.25 | Q355 | 48 | 10.3 | 97 | 97 | Hot-dip galvanizing 120μm |
| 2400 | 3.25 | Q355 | 48 | 12.09 | 83 | 83 | Hot-dip galvanizing 120μm |
| 3000 | 3.25 | Q355 | 48 | 14.95 | 67 | 67 | Hot-dip galvanizing 120μm |
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Number of Roots / Ton | Meters / Ton | Surface Treatment |
|---|---|---|---|---|---|---|---|
| 600 | 2.75 | Q355 | 48 | 3.15 | 317 | 228 | Hot-dip galvanizing 120μm |
| 900 | 2.75 | Q355 | 48 | 4.02 | 249 | 225 | Hot-dip galvanizing 120μm |
| 1200 | 2.75 | Q355 | 48 | 5.65 | 177 | 233 | Hot-dip galvanizing 120μm |
| 1500 | 2.75 | Q355 | 48 | 6.52 | 153 | 221 | Hot-dip galvanizing 120μm |
| 1800 | 2.75 | Q355 | 48 | 8.15 | 123 | 229 | Hot-dip galvanizing 120μm |
| 2100 | 2.75 | Q355 | 48 | 9.02 | 111 | 212 | Hot-dip galvanizing 120μm |
| 2400 | 2.75 | Q355 | 48 | 10.65 | 94 | 224 | Hot-dip galvanizing 120μm |
| 3000 | 2.75 | Q355 | 48 | 13.15 | 76 | 225 | Hot-dip galvanizing 120μm |
A local contractor was tasked with constructing three residential towers under a tight schedule and limited scaffolding budget. The project required a durable, reusable scaffolding solution that could move quickly between buildings without compromising safety.
A complete Economical Ringlock Scaffolding System was supplied, manufactured in Q235 steel with a painted finish to lower upfront costs while maintaining structural integrity. The ringlock’s rosette system enabled rapid assembly and dismantling with minimal labor.
The scaffolding was reused across all buildings, with minimal wear and no need for replacement components — maximizing ROI while ensuring safety and efficiency.
→ Ringlock Scaffolding – Economical doesn’t mean compromise. It means smart construction.
We use high-quality Q235 steel with a painted or light-galvanized finish to reduce material costs, while still meeting structural safety standards. Fewer components and faster installation also help cut labor expenses.
Although it’s cost-effective, the system is fully capable of supporting mid- to large-scale projects, including multi-story buildings, bridges, and industrial structures.
With proper handling and storage, this Cuplock system can be reused for 6–8 years or over 100 project cycles, depending on site conditions.
Not at all. All Cuplock components are tested to comply with EN12810 / BS1139, ensuring the same level of safety and stability as premium systems.
Customers typically report 20–35% savings on total project scaffolding costs, including reduced setup time, lower freight volume, and long-term reuse.
Yes. We offer custom lengths, finishes, branding, and packaging to suit your project and regional requirements.
