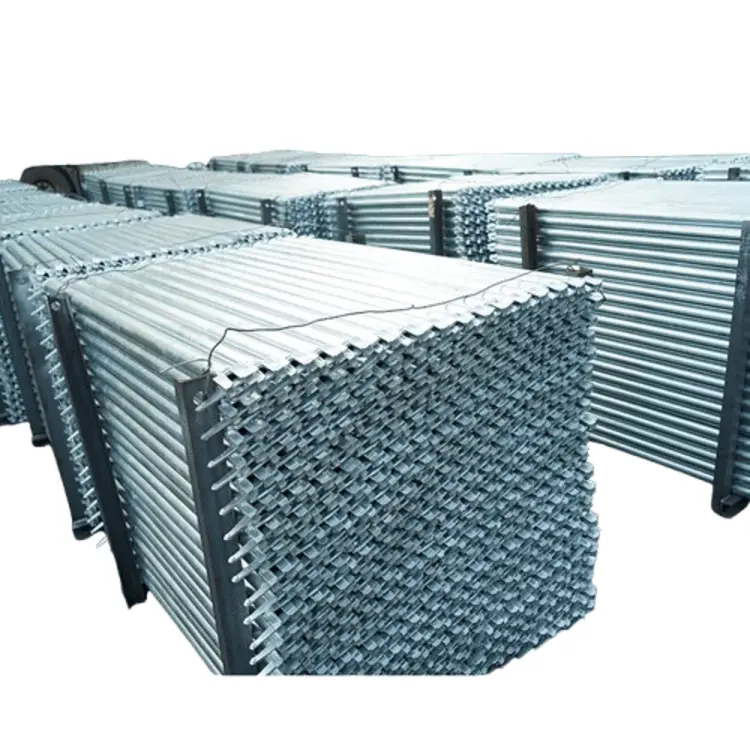

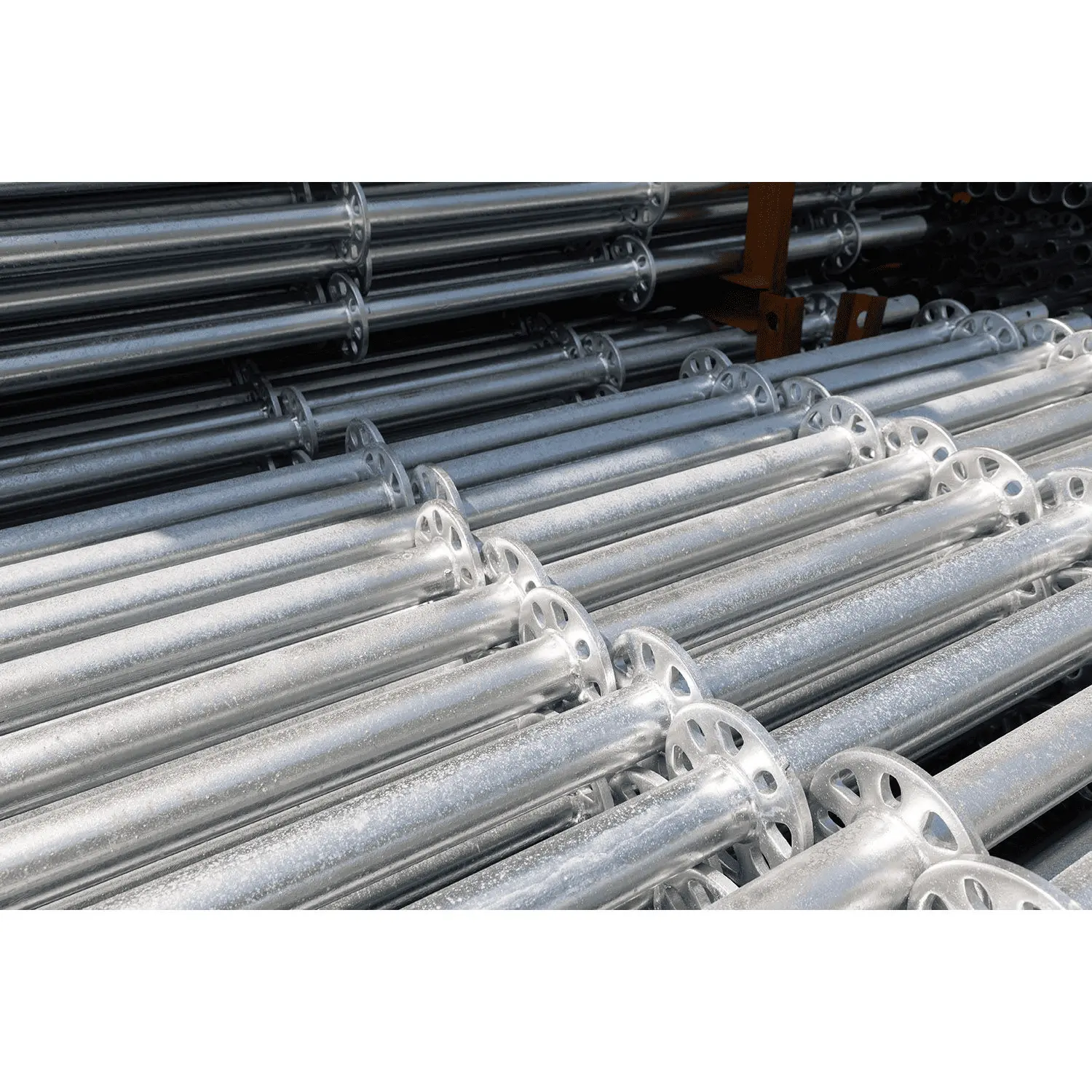

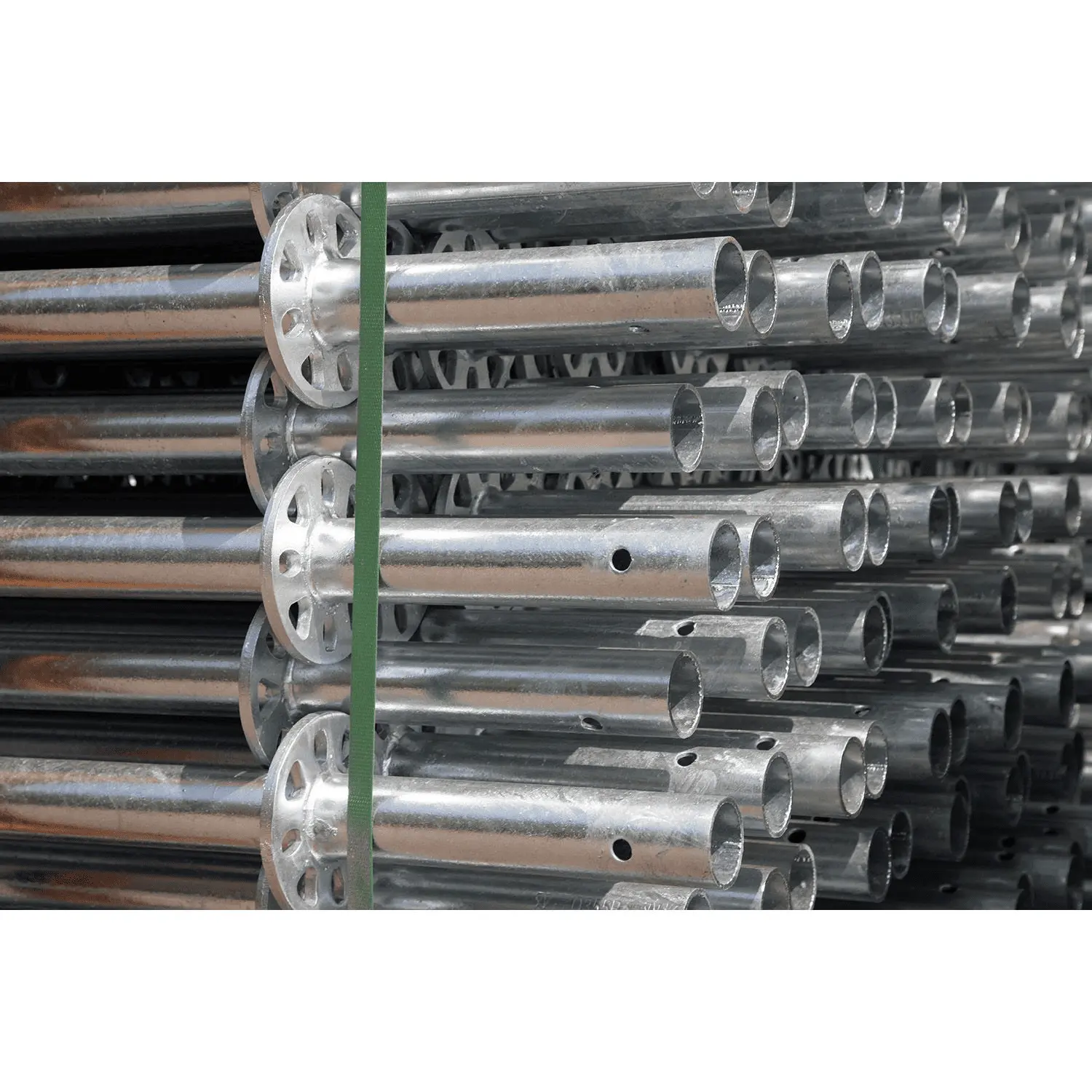

OEM Hot-Dip Galvanized Ringlock Scaffolding For Construction Exporters, Factories

Description

Explanation

Product

Ringlock scaffolding System

Type

system standard

Horizontal Rod

Diagonal brace

Size

1000-2500mm

300-1200mm

600*1500-1800*2240

Wall thickness

2.75mm

3.25mm

2.75mm

Standard

ISO 9001     EN 12810 / 12811

Surface treatment

Hot-dip galvanizing/Electro-galvanizing/Spray painting

Application

Construction engineering, Bridges and transportation, industry and energy, etc

Packaging

Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements

Delivery time

30 to 45 days from the date of drawing confirmation.

Payment Terms

 T/T or L/C at sight

1. Easy assembly: no tools required, quick to build.
2. High safety: strong stability, large load-bearing capacity.
3. Wide application: can be used in a variety of building types.
4. Reusable: durable, cost-saving.
5. Low maintenance: strong and durable, reducing maintenance costs.

Product Description

Product introduction

Ring-lock Scaffolding
The ring-lock scaffolding is a type of high-strength, load-bearing scaffolding typically made from steel. Its structural design allows for easy and quick assembly of components, making it suitable for various complex environments. The unique ring-lock connection points provide excellent stability and safety, making it ideal for high-rise buildings and large engineering projects.
Ring-lock scaffolding is widely used in various applications due to its strength and versatility. It is particularly suited for high-rise building construction, where its robust structure can support the demands of tall buildings. In industrial settings, such as factories and power plants, it provides safe access to elevated areas for workers. Additionally, ring-lock scaffolding is essential in bridge construction and maintenance, allowing secure access for those involved in these projects. It is also commonly employed for staging platforms at events like concerts and festivals. In renovation projects, both residential and commercial, it offers reliable access to multiple levels. Moreover, it plays a significant role in civil engineering initiatives, including the construction of tunnels, dams, and roads, making it a favored choice across diverse fields.

Product specification

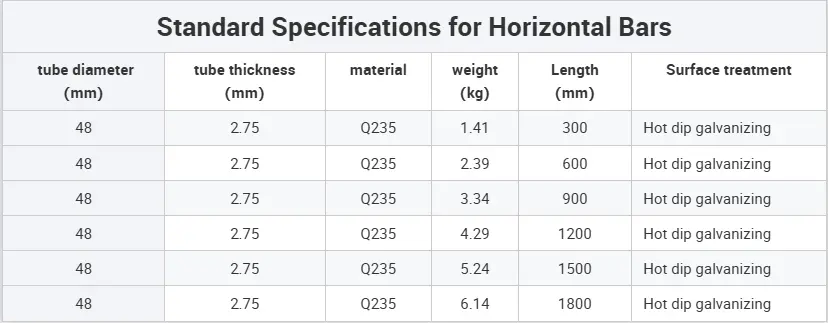

Product specification 1

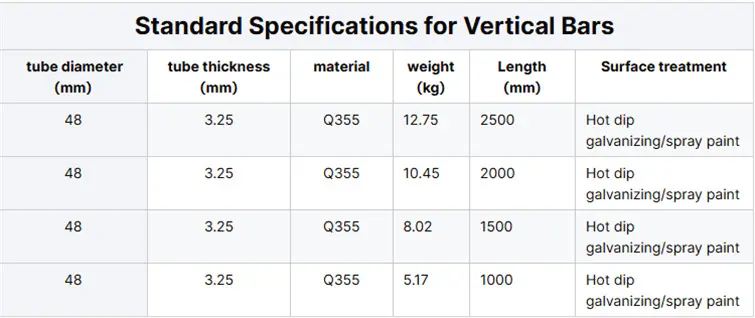

Product specification 2

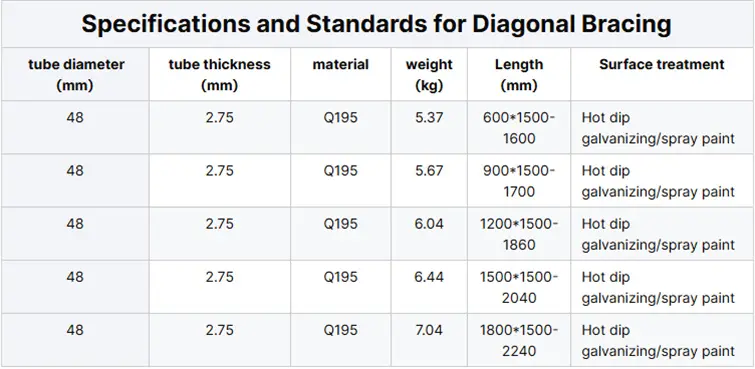

Product specification 3

Application

High-rise building

Suitable for the construction of large residential buildings, commercial buildings and other high-rise buildings, to provide stable support and security.

Bridge construction

Used for bridge construction, maintenance and reinforcement, can adapt to different bridge structures.

Tunnel construction

Provide a stable support system to adapt to the construction needs of complex environments such as tunnels.

Industrial buildings

The construction, maintenance and renovation of large industrial facilities such as factories and warehouses.

Municipal engineering

Such as roads, subways, drainage systems and other municipal engineering projects scaffolding applications.

Curtain wall construction

Suitable for the support needs of facade decoration such as curtain wall and glass installation projects.

Maintenance and reinforcement

It is widely used in the maintenance, reinforcement and renovation of buildings to provide temporary support.

Temporary structure

Such as exhibition construction, stage construction and other temporary construction needs. Due to its flexibility and safety, coil scaffolding is widely used.

Ring-lock scaffolding

Ring-lock scaffolding (1)
Ring-lock scaffolding (2)
Ring-lock scaffolding (3)
Ring-lock scaffolding (4)

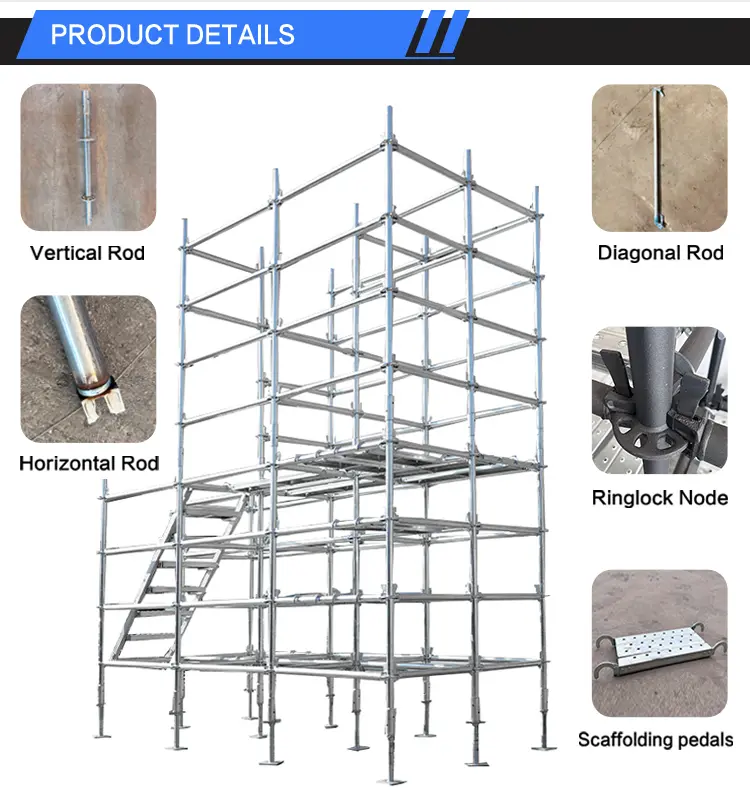

Ring-lock scaffolding (5)
Ring-lock scaffolding (6)
Ring-lock scaffolding (7)
Ring-lock scaffolding (8)
Ring-lock scaffolding (9)
Ring-lock scaffolding (10)
Ring-lock scaffolding (11)
Ring-lock scaffolding (12)

Frequently Asked Questions

What is ring-lock scaffolding and what is it made of?
Ring-lock scaffolding is a high-strength, load-bearing modular scaffolding system typically made from durable steel. Its design features unique ring-lock connection points that allow for fast, easy assembly and high load capacity.
In which construction scenarios is ring-lock scaffolding most commonly used?
It is widely used in high-rise building construction, bridge and tunnel projects, industrial facility maintenance (like factories and power plants), municipal works, curtain wall installations, building reinforcement, and temporary event structures.
Why is ring-lock scaffolding considered safer than traditional systems?
Its structural connection points utilize a unique mechanical lock design that distributes forces evenly and minimizes the risk of shifting. Made from premium steel, it offers exceptional stability and load-bearing performance under harsh conditions.
Can this scaffolding system adapt to complex or irregular structures?
Yes. Due to the multi-directional rings on the standards, components can be attached at various angles, making it highly flexible and adaptable to complex bridge architectures, curved tunnels, and irregular building facades.
Is ring-lock scaffolding suitable for temporary public events?
Absolutely. Because of its fast installation, teardown speed, and high safety standards, it is frequently chosen for constructing staging platforms, lighting trusses, and temporary stands at concerts, festivals, and exhibitions.
