Economy Ringlock Scaffolding is a budget-friendly solution for short-term or light-duty projects. Made from Q235 steel with basic corrosion protection, it meets essential safety and structural needs while keeping costs low.

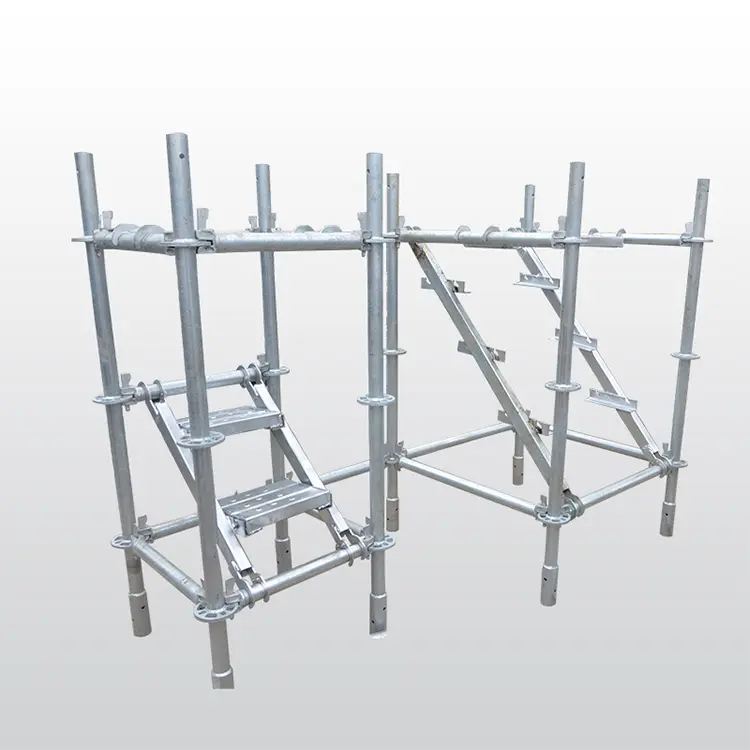

Ideal for temporary platforms, event setups, and interior construction, this system is compatible with standard ringlock connections and supports fast, tool-free assembly.
Made with Q235 steel and a simplified finish, it significantly reduces upfront costs—ideal for projects with limited budgets.
Lightweight structure with reusable components that are easy to transport, stack, and store—perfect for rental businesses.
Meets basic structural and safety needs for temporary platforms, interior jobs, event staging, and small-scale construction.

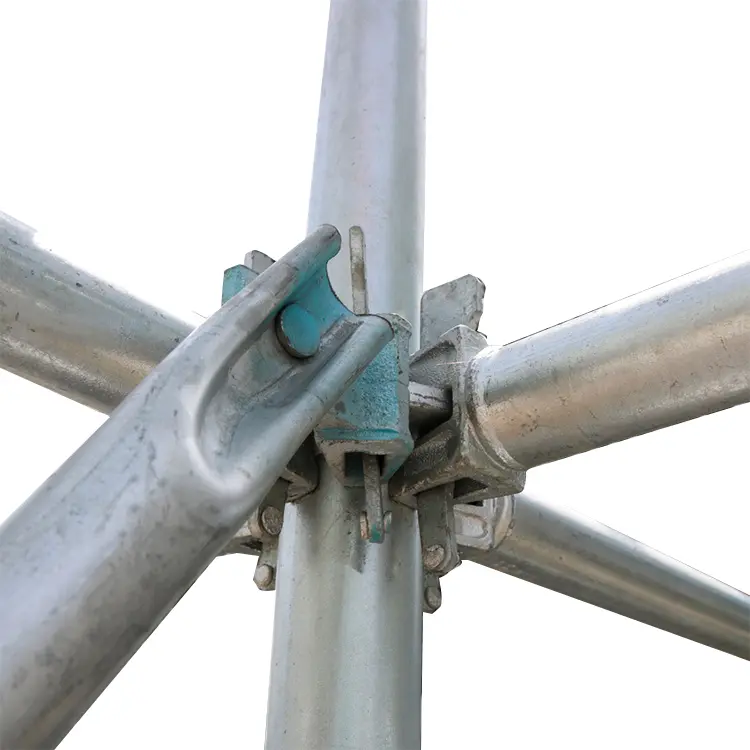

Fully compatible with standard ringlock systems and most common accessories, allowing seamless integration into existing inventory.
| Description | Explanation | ||
|---|---|---|---|
| Product | Ringlock Scaffolding System | ||
| Type | System Standard | Horizontal Rod | Diagonal Brace |
| Size | 1000-2500mm | 300-1200mm | 600*1500-1800*2240 |
| Wall Thickness | 2.75mm | 3.25mm | 2.75mm |
| Standard | ISO 9001, EN 12810 / 12811 | ||
| Surface Treatment | Hot-dip galvanizing / Electro-galvanizing / Spray painting | ||
| Application | Construction engineering, Bridges and transportation, Industry and energy, etc. | ||

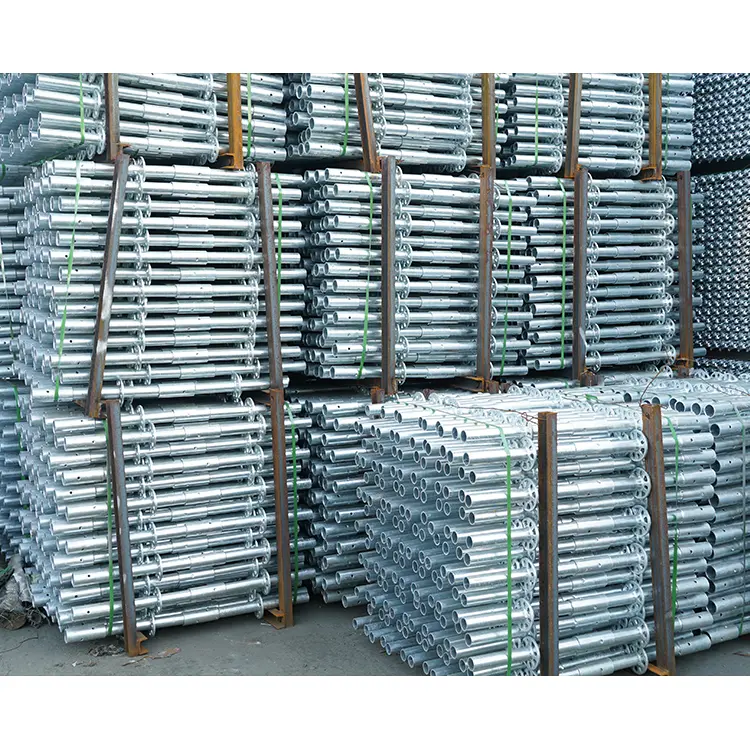

| Packaging | Steel Pallet, Plastic-Wrapped Bundles, or package as per customer requirements | ||
| Delivery Time | 30 to 45 days from the date of drawing confirmation | ||
| Payment Terms | T/T or L/C at sight | ||
We believe that durability and sustainability go hand in hand. Our scaffolding systems are not only built to last but also designed with the environment in mind.
All primary components are made of structural steel, which is up to 95% recyclable at the end of its service life. This significantly reduces construction waste and supports circular use in infrastructure projects.
Our hot-dip galvanizing process follows optimized energy-saving procedures. Waste heat is recycled within the production line, and we continuously monitor emissions to minimize environmental impact.
| Tube Diameter (mm) | Tube Thickness (mm) | Material | Weight (kg) | Length (mm) | Surface Treatment |
|---|---|---|---|---|---|
| 48 | 3.25 | Q235 | 12.75 | 2500 | Hot-dip galvanizing 80μm |
| 48 | 3.25 | Q235 | 10.45 | 2000 | Hot-dip galvanizing 80μm |
| 48 | 3.25 | Q235 | 8.02 | 1500 | Hot-dip galvanizing 80μm |
| 48 | 3.25 | Q235 | 5.17 | 1000 | Hot-dip galvanizing 80μm |
| Tube Diameter (mm) | Tube Thickness (mm) | Material | Weight (kg) | Length (mm) | Surface Treatment |
|---|---|---|---|---|---|
| 48 | 2.75 | Q235 | 1.41 | 300 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 2.39 | 600 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 3.34 | 900 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 4.29 | 1200 | Hot-dip galvanizing 80μm |
| Tube Diameter (mm) | Tube Thickness (mm) | Material | Weight (kg) | Length (mm) | Surface Treatment |
|---|---|---|---|---|---|
| 48 | 2.75 | Q235 | 5.37 | 600*1500-1600 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 5.67 | 900*1500-1700 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 6.04 | 1200*1500-1860 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 6.44 | 1500*1500-2040 | Hot-dip galvanizing 80μm |
| 48 | 2.75 | Q235 | 7.04 | 1800*1500-2240 | Hot-dip galvanizing 80μm |
Project Background: This project is the renovation of residential buildings in the old city. The building height is generally below 15 meters. The construction period is short and the budget is limited. It is necessary to achieve the optimal cost configuration while ensuring construction safety.
Solution Applied: Economical ring-lock scaffolding (Q235 material, hot-dip galvanized zinc layer thickness 40μm).
Low material cost, suitable for small and medium-sized projects or budget-sensitive projects.
Standardized components are easy to transport and quickly build, saving construction time.
Can be used for multiple small and medium-sized projects with a short payback period.
Meets domestic construction safety regulations and stability standards.
"Under budget constraints, this economical scaffolding saved us more than 20% of material costs without compromising on construction safety. It is very cost-effective."
— Customer FeedbackQ: What is an "economical" scaffolding?
Economical scaffolding usually uses Q235 carbon steel material, and the surface is hot-dip galvanized (the zinc layer thickness is about 40μm). While ensuring basic bearing capacity and safety, it reduces material costs and is suitable for small and medium-sized projects or projects with limited budgets.
Q: What is the difference between it and the standard version (such as Q345/80μm)?
The main difference lies in the material strength and anti-corrosion layer thickness:
- Economical type: Q235 + 40μm zinc layer (highly cost-effective).
- Standard type: Q345 + 80μm zinc layer (more durable, designed for high-frequency use and heavy-load scenarios).
Q: Is construction safety guaranteed with economical scaffolding?
Yes. Although it is an economical configuration, the design is still based on national safety standards (such as JGJ 130 and GB 20686). As long as it is correctly erected and used in a standardized manner, construction safety is fully ensured.
Q: Can the economical scaffolding be reused?
Yes. As long as it is used properly and stored correctly, the economical scaffolding system can be used repeatedly across multiple similar working conditions, yielding a strong return on investment.
Q: Is hot-dip galvanizing 40μm enough for corrosion protection?
For engineering projects with a short cycle and moderate frequency of use, the 40μm zinc layer effectively resists corrosion from outdoor rain and moisture. However, if the project is located in coastal or highly humid environments, choosing a higher protection level (e.g. 80μm) is recommended.
