OEM Standard modular cuolock scaffolding for Facade Work Exporter, Supplier

Product Overview

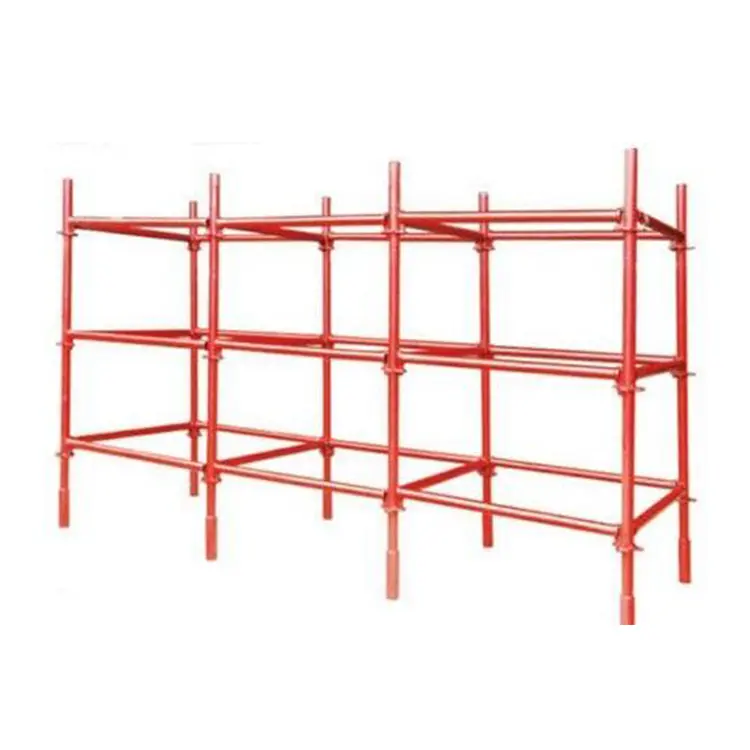

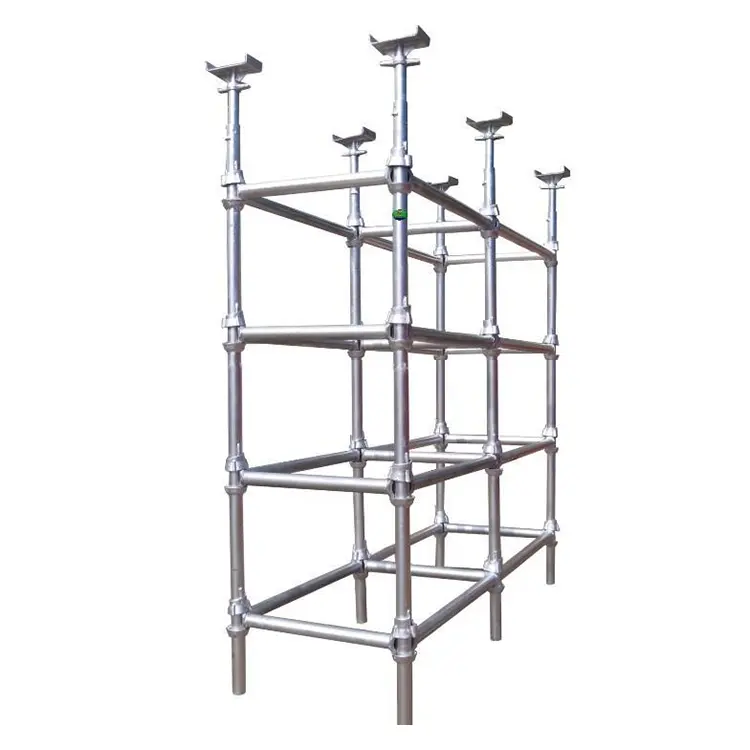

Standard Modular Design Cuplock Scaffolding offers a versatile and efficient solution for modern construction needs. Featuring a simple yet robust cup-and-blade locking mechanism, it allows fast assembly and dismantling, saving significant labor time on site.

→ Choose Standard Modular Cuplock Scaffolding for speed, safety, and cost efficiency on every job site!

Key Features of Cuplock Scaffolding System

Fast Assembly & Dismantling

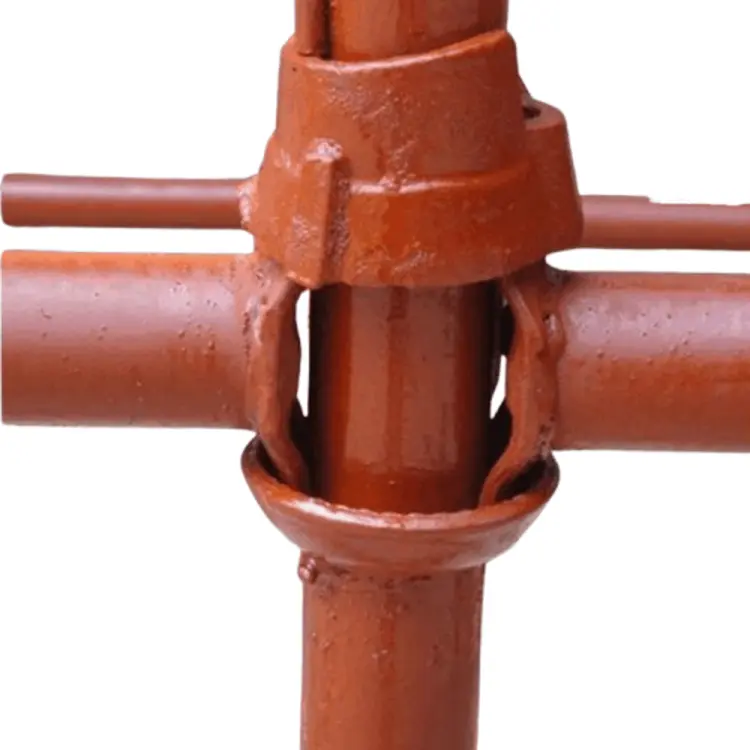

The unique cup-and-blade locking design allows quick, tool-free assembly, saving up to 30-40% in labor time.

High Load Capacity

Built from high-strength steel, Cuplock scaffolding safely supports heavy loads for demanding construction projects.

Standard Modular Design

Made of high-quality steel, it has strong strength and good corrosion resistance, ensuring long-term durability and reliable load-bearing capacity.

Fewer Components

Simplified system means fewer parts to manage, reducing storage, handling, and transportation costs.

Superior Stability

Rigid connections enhance structural stability, ensuring worker safety at height.

Durable Surface Protection

Hot-dip galvanized finish protects against corrosion for longer service life.

Compliance with International Standards

Manufactured to meet EN12810, BS1139, and other major global safety standards.

Product Gallery

Description	Explanation
Product	Cuplock scaffolding System
Type	Cuplock rod	Horizontal Rod
Size	600-3000mm	600-1500mm
Wall thickness	3.5mm/3.25mm	3.25mm/2.75mm
Standard	ISO 9001 EN 12810 / 12811
Surface treatment	Hot-dip galvanizing/Electro-galvanizing/Spray painting
Application	Construction engineering, Bridges and transportation, industry and energy, etc
Packaging	Steel Pallet, Plastic-Wrapped Bundles, Or package as per the customer's requirements
Delivery time	30 to 45 days from the date of drawing confirmation.
Payment Terms	T/T or L/C at sight

Why Choose Us?

Choosing us means more than getting reliable scaffolding parts. You’re partnering with a manufacturer who brings 12+ years of experience, 40,000㎡ production space, full system customization, and a proven record of serving 200+ partners across 30+ provinces and 40+ countries.

Product parameters

Cuplock scaffold Vertical Bars (3.5mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	3.5	Q355	48	3.69	271	192	Hot-dip galvanizing 60μm
900	3.5	Q355	48	4.92	203	203	Hot-dip galvanizing 60μm
1200	3.5	Q355	48	6.85	146	190	Hot-dip galvanizing 60μm
1500	3.5	Q355	48	8.78	114	183	Hot-dip galvanizing 60μm
1800	3.5	Q355	48	9.95	100	190	Hot-dip galvanizing 60μm
2100	3.5	Q355	48	11.08	90	198	Hot-dip galvanizing 60μm
2400	3.5	Q355	48	13.05	76	190	Hot-dip galvanizing 60μm
3000	3.5	Q355	48	16.15	62	192	Hot-dip galvanizing 60μm

Cuplock scaffold Vertical Bars (3.25mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	3.25	Q355	48	3.51	284	284	Hot-dip galvanizing 60μm
900	3.25	Q355	48	4.56	219	219	Hot-dip galvanizing 60μm
1200	3.25	Q355	48	6.37	157	157	Hot-dip galvanizing 60μm
1500	3.25	Q355	48	7.42	135	135	Hot-dip galvanizing 60μm
1800	3.25	Q355	48	9.23	108	108	Hot-dip galvanizing 60μm
2100	3.25	Q355	48	10.3	97	97	Hot-dip galvanizing 60μm
2400	3.25	Q355	48	12.09	83	83	Hot-dip galvanizing 60μm
3000	3.25	Q355	48	14.95	67	67	Hot-dip galvanizing 60μm

Cuplock scaffold Vertical Bars (2.75mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	2.75	Q355	48	3.15	317	228	Hot-dip galvanizing 60μm
900	2.75	Q355	48	4.02	249	225	Hot-dip galvanizing 60μm
1200	2.75	Q355	48	5.65	177	233	Hot-dip galvanizing 60μm
1500	2.75	Q355	48	6.52	153	221	Hot-dip galvanizing 60μm
1800	2.75	Q355	48	8.15	123	229	Hot-dip galvanizing 60μm
2100	2.75	Q355	48	9.02	111	212	Hot-dip galvanizing 60μm
2400	2.75	Q355	48	10.65	94	224	Hot-dip galvanizing 60μm
3000	2.75	Q355	48	13.15	76	225	Hot-dip galvanizing 60μm

Cuplock scaffold Horizontal Bars (3.5mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	3.5	Q355	48	3.51	284	284	Hot-dip galvanizing 60μm
900	3.5	Q355	48	4.56	219	219	Hot-dip galvanizing 60μm
1200	3.5	Q355	48	6.37	157	157	Hot-dip galvanizing 60μm
1500	3.5	Q355	48	7.42	135	135	Hot-dip galvanizing 60μm

Cuplock scaffold Horizontal Bars (3.25mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	3.25	Q355	48	2.26	284	284	Hot-dip galvanizing 60μm
900	3.25	Q355	48	3.31	219	219	Hot-dip galvanizing 60μm
1200	3.25	Q355	48	4.36	157	157	Hot-dip galvanizing 60μm
1500	3.25	Q355	48	5.4	135	135	Hot-dip galvanizing 60μm

Cuplock scaffold Horizontal Bars (2.75mm thickness)

Length(mm)	Tube thickness(mm)	Material	Tube diameter(mm)	Weight(kg)	Number of roots/ton	Meters/tons	Surface treatment
600	2.75	Q355	48	1.94	515	283	Hot-dip galvanizing 60μm
900	2.75	Q355	48	2.81	356	303	Hot-dip galvanizing 60μm
1200	2.75	Q355	48	3.68	272	313	Hot-dip galvanizing 60μm
1500	2.75	Q355	48	4.55	220	319	Hot-dip galvanizing 60μm

Standard cuplock scaffolding project case

Location: Xi’an, China

Project Type: Steel Structure Factory Building

Application: Full-height façade access, internal maintenance platforms, steel assembly support

Project Overview

This large-scale industrial project involved the construction of a modern steel structure factory with high vertical clearance and complex assembly needs. Reliable, high-capacity scaffolding was essential for façade installation, steel erection, and roof support tasks.

Our Solution

We supplied a complete Cuplock Scaffolding System, including vertical standards, ledgers, diagonal braces, and base jacks. The system’s modular design allowed for rapid erection of tall, stable scaffolds that adapted to both concrete walls and steel frame interfaces.

Key Results

Scaffold height exceeded 20m with safe working platforms at each level
Fast installation reduced construction delays
Withstood strong winds and uneven ground with minimal anchoring
Hot-dip galvanized finish protected all components throughout the dry, dusty site environment

→ Cuplock – the reliable solution for complex industrial construction projects.

FAQ

What is a standard modular Cuplock scaffolding system?

It’s a scaffolding system built with pre-engineered, standardized components—such as vertical standards, ledgers, and braces—that fit together easily using the cup-and-blade locking mechanism, allowing fast, tool-free assembly across various project types.

Why is modular design important for construction sites?

Modular design means:

Quick setup and dismantling
Flexible configurations for different site layouts
Reduced labor and training costs
Easy reuse across multiple projects

Can this system be customized for unique building shapes?

Yes. Though the components are standardized, they can be assembled in custom layouts, making it suitable for curved façades, corners, industrial structures, and tight spaces.

Is this scaffolding compatible with other brands?

If your existing system follows standard Cuplock dimensions, most components will be compatible. We also offer custom adapters if needed.

How does the modular Cuplock system help reduce costs?

Fewer components, quicker installation, and high reusability reduce:

Material waste
Storage and transport volume
On-site labor hours

Is the modular system safe for high-rise use?

Absolutely. Cuplock scaffolding is engineered to support heavy loads and maintain excellent stability even in multi-level and high-rise applications, fully compliant with EN12810 and BS1139 standards.

→ Cuplock – One system. Endless configurations. Built for real jobsite speed.
