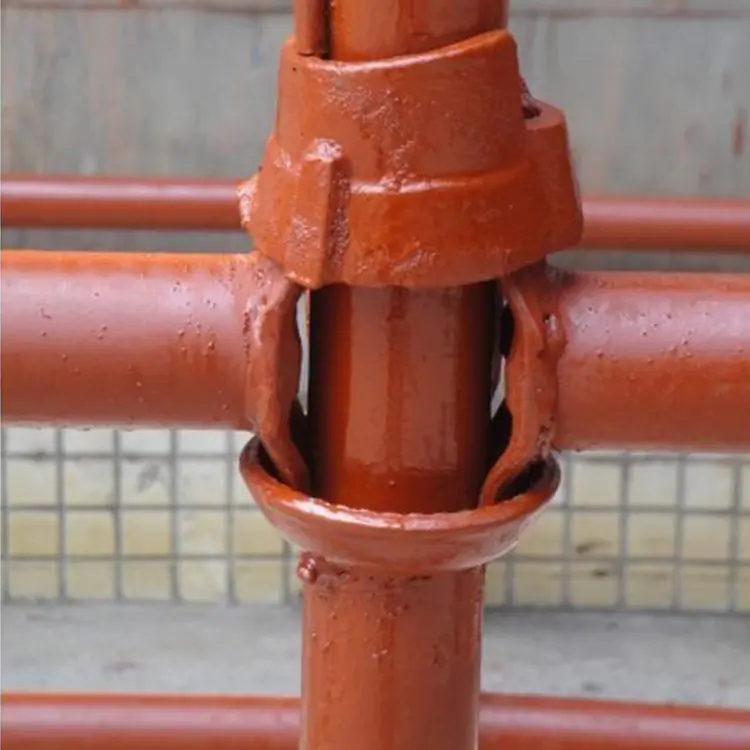

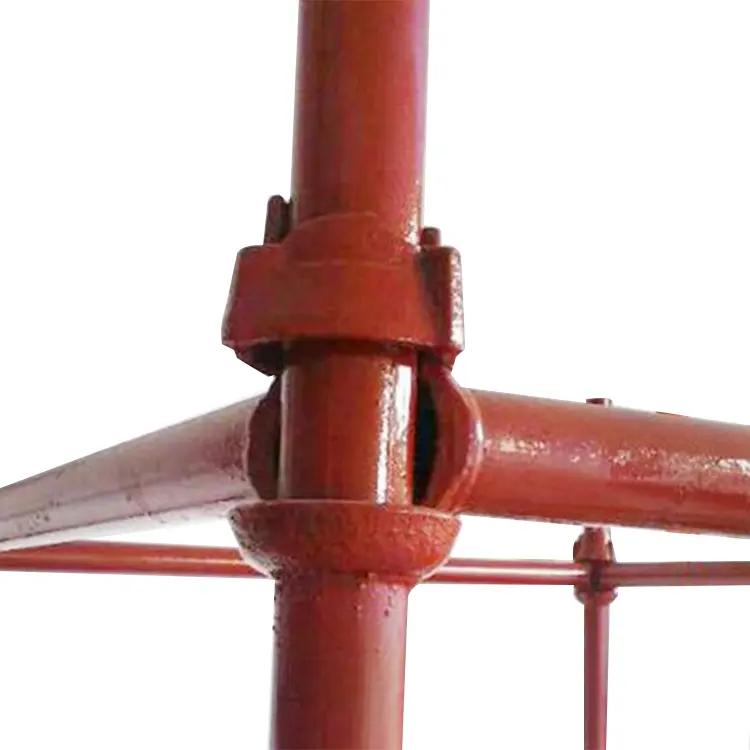

The Cuplock Scaffolding System is a high-performance modular scaffolding solution widely used in building construction, infrastructure, and industrial projects. Designed with a unique cup-and-blade locking mechanism, it allows for fast, tool-free assembly, exceptional stability, and easy adaptation to complex site conditions.
Manufactured with Q235 or Q345 structural steel and finished with hot-dip galvanization, the system offers excellent durability, corrosion resistance, and long-term reusability. With standardized components and flexible configurations, Cuplock helps contractors reduce labor costs, improve efficiency, and ensure site safety across a wide range of applications.
Cut Labor Costs by 30% with Quick-Lock Technology
Each connection takes ≤15 seconds to assemble.
Compared to the traditional fastener-type scaffolding, saves 30–40% on labor.
One worker can do the work of three.
50% Faster Assembly on Complex Jobsites
No bolts or tools required.
Perfect for tight schedules and multi-shift construction sites.
Speeds up transitions between phases and structures.
Secure Cup-and-Blade Lock = Stable and Safe
Rigid joints minimize sway and vibration under heavy loads.
Fully compatible with guardrails, toe boards, and safety ladders.
Complies with EN12810 / BS1139 standards.
Hot-Dip Galvanized Finish Lasts 10+ Years
No painting needed.
No rust even in humid or coastal environments.
Reduce replacement parts cost by up to 80% over time.
Standardized, Stackable Components
Easy to store, count, and transport.
Cut storage and shipping volume by up to 40%.
Ideal for rental fleets and cross-project reuse.
| Cuplock Scaffold Vertical Bars (3.5mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 3.5 | Q355 | 48 | 3.69 | 271 | 192 | Hot-dip galvanizing 120μm |
| 900 | 3.5 | Q355 | 48 | 4.92 | 203 | 203 | Hot-dip galvanizing 120μm |
| 1200 | 3.5 | Q355 | 48 | 6.85 | 146 | 190 | Hot-dip galvanizing 120μm |
| 1500 | 3.5 | Q355 | 48 | 8.78 | 114 | 183 | Hot-dip galvanizing 120μm |
| 1800 | 3.5 | Q355 | 48 | 9.95 | 100 | 190 | Hot-dip galvanizing 120μm |
| 2100 | 3.5 | Q355 | 48 | 11.08 | 90 | 198 | Hot-dip galvanizing 120μm |
| 2400 | 3.5 | Q355 | 48 | 13.05 | 76 | 190 | Hot-dip galvanizing 120μm |
| 3000 | 3.5 | Q355 | 48 | 16.15 | 62 | 192 | Hot-dip galvanizing 120μm |
| Cuplock Scaffold Vertical Bars (3.25mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 3.25 | Q355 | 48 | 3.51 | 284 | 284 | Hot-dip galvanizing 120μm |
| 900 | 3.25 | Q355 | 48 | 4.56 | 219 | 219 | Hot-dip galvanizing 120μm |
| 1200 | 3.25 | Q355 | 48 | 6.37 | 157 | 157 | Hot-dip galvanizing 120μm |
| 1500 | 3.25 | Q355 | 48 | 7.42 | 135 | 135 | Hot-dip galvanizing 120μm |
| 1800 | 3.25 | Q355 | 48 | 9.23 | 108 | 108 | Hot-dip galvanizing 120μm |
| 2100 | 3.25 | Q355 | 48 | 10.3 | 97 | 97 | Hot-dip galvanizing 120μm |
| 2400 | 3.25 | Q355 | 48 | 12.09 | 83 | 83 | Hot-dip galvanizing 120μm |
| 3000 | 3.25 | Q355 | 48 | 14.95 | 67 | 67 | Hot-dip galvanizing 120μm |
| Cuplock Scaffold Vertical Bars (2.75mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 2.75 | Q355 | 48 | 3.15 | 317 | 228 | Hot-dip galvanizing 120μm |
| 900 | 2.75 | Q355 | 48 | 4.02 | 249 | 225 | Hot-dip galvanizing 120μm |
| 1200 | 2.75 | Q355 | 48 | 5.65 | 177 | 233 | Hot-dip galvanizing 120μm |
| 1500 | 2.75 | Q355 | 48 | 6.52 | 153 | 221 | Hot-dip galvanizing 120μm |
| 1800 | 2.75 | Q355 | 48 | 8.15 | 123 | 229 | Hot-dip galvanizing 120μm |
| 2100 | 2.75 | Q355 | 48 | 9.02 | 111 | 212 | Hot-dip galvanizing 120μm |
| 2400 | 2.75 | Q355 | 48 | 10.65 | 94 | 224 | Hot-dip galvanizing 120μm |
| 3000 | 2.75 | Q355 | 48 | 13.15 | 76 | 225 | Hot-dip galvanizing 120μm |
| Cuplock Scaffold Horizontal Bars (3.5mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 3.5 | Q355 | 48 | 3.51 | 284 | 284 | Hot-dip galvanizing 120μm |
| 900 | 3.5 | Q355 | 48 | 4.56 | 219 | 219 | Hot-dip galvanizing 120μm |
| 1200 | 3.5 | Q355 | 48 | 6.37 | 157 | 157 | Hot-dip galvanizing 120μm |
| 1500 | 3.5 | Q355 | 48 | 7.42 | 135 | 135 | Hot-dip galvanizing 120μm |
| Cuplock Scaffold Horizontal Bars (3.25mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 3.25 | Q355 | 48 | 2.26 | 284 | 284 | Hot-dip galvanizing 120μm |
| 900 | 3.25 | Q355 | 48 | 3.31 | 219 | 219 | Hot-dip galvanizing 120μm |
| 1200 | 3.25 | Q355 | 48 | 4.36 | 157 | 157 | Hot-dip galvanizing 120μm |
| 1500 | 3.25 | Q355 | 48 | 5.4 | 135 | 135 | Hot-dip galvanizing 120μm |
| Cuplock Scaffold Horizontal Bars (2.75mm Thickness) | |||||||
|---|---|---|---|---|---|---|---|
| Length (mm) | Tube Thickness (mm) | Material | Tube Diameter (mm) | Weight (kg) | Roots / Ton | Meters / Ton | Surface Treatment |
| 600 | 2.75 | Q355 | 48 | 1.94 | 515 | 283 | Hot-dip galvanizing 120μm |
| 900 | 2.75 | Q355 | 48 | 2.81 | 356 | 303 | Hot-dip galvanizing 120μm |
| 1200 | 2.75 | Q355 | 48 | 3.68 | 272 | 313 | Hot-dip galvanizing 120μm |
| 1500 | 2.75 | Q355 | 48 | 4.55 | 220 | 319 | Hot-dip galvanizing 120μm |
