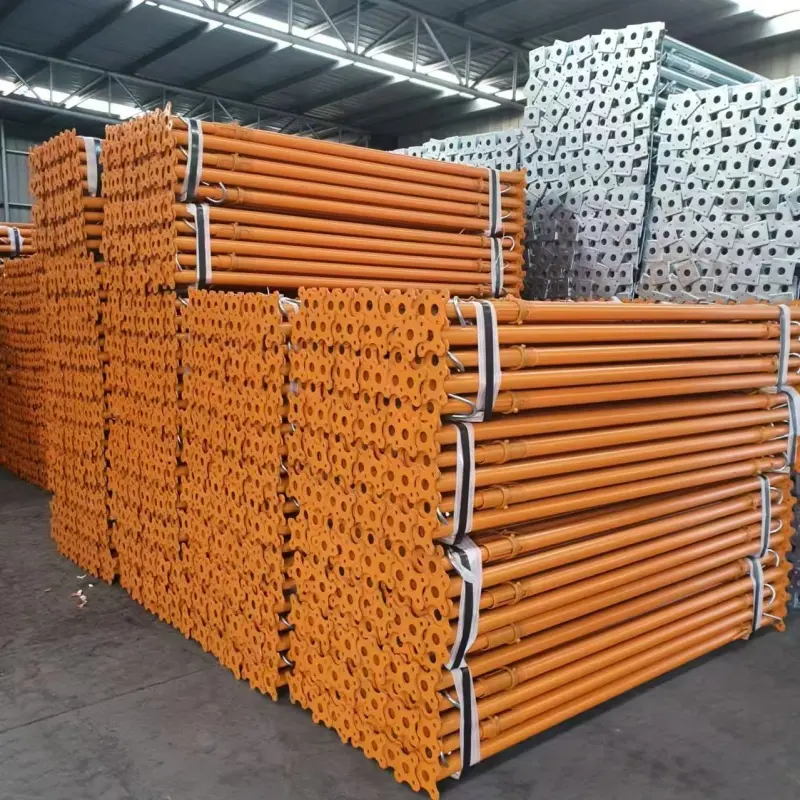

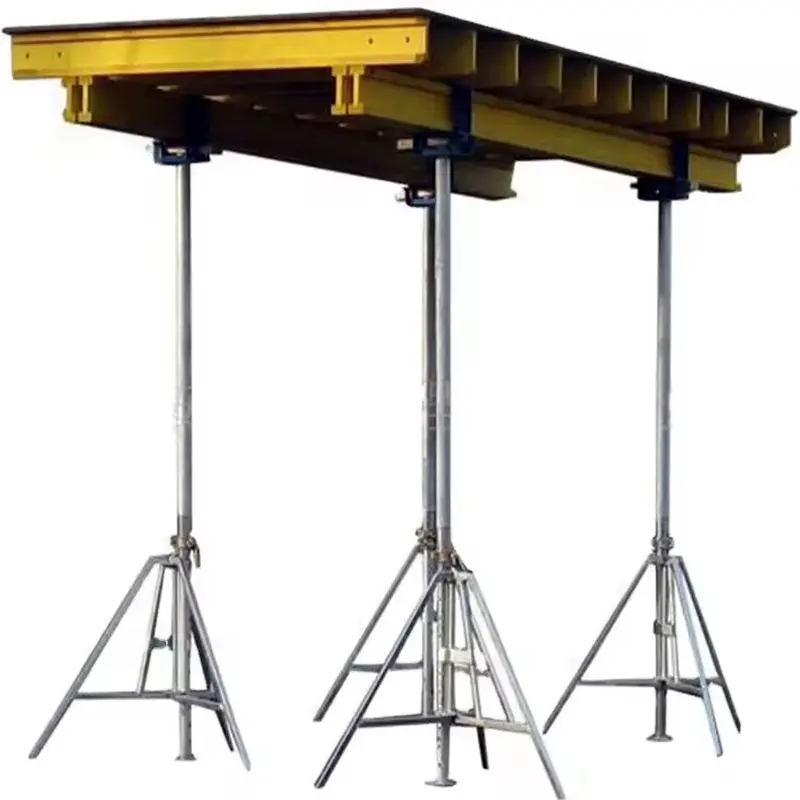

Our adjustable steel props are manufactured from Q235 / Q345 high-strength steel, providing superior load capacity and durability for slab and beam formwork.
With a quick screw-thread adjustment system, contractors can achieve precise height alignment while saving installation time.

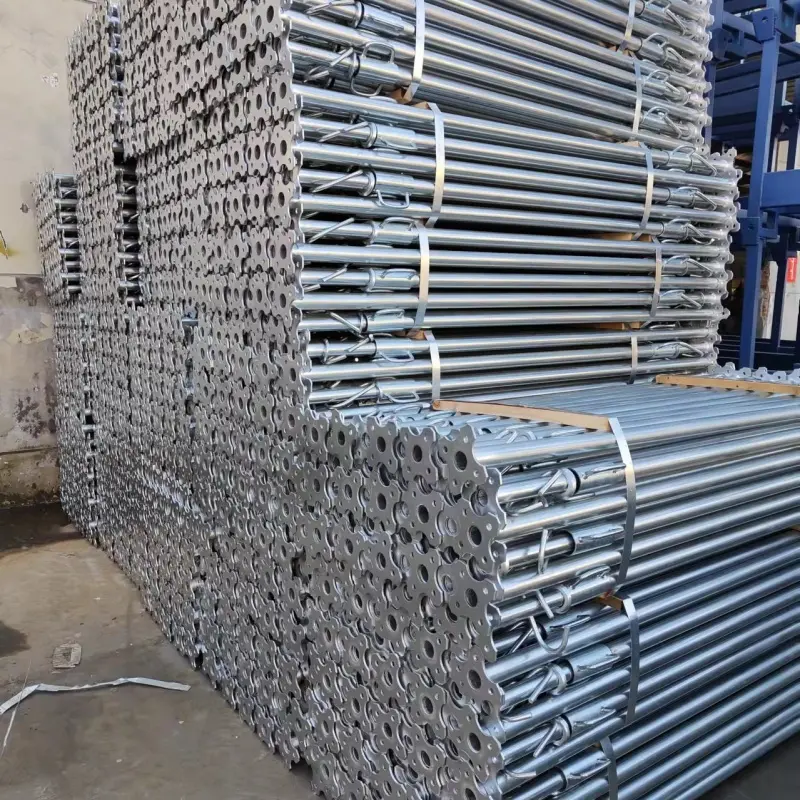

Hot-dip galvanized finishing ensures corrosion resistance and a longer service life, even in tough construction environments.
1. Selection of high-quality steel: Q345 and other high-quality steel, chemical stability, less impurities, good processability, to ensure the processing accuracy and quality of steel support, to meet the needs of automated production.

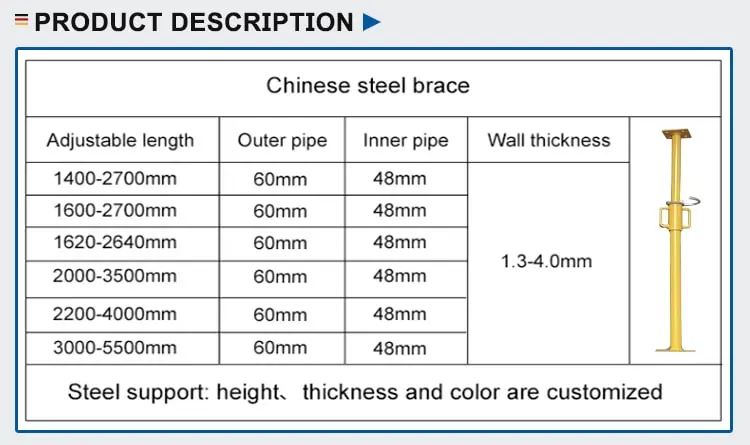

| Italian steel support | ||||
|---|---|---|---|---|
| Wall thickness | Min | Max | Outer pipe diameter | Inner pipe diameter |
| 1.5 - 3.5mm | 1.7m | 3.0m | 56mm | 48mm |
| 1.8m | 3.2m | 56mm | 48mm | |
| 2.0m | 3.5m | 56mm | 48mm | |
| 2.0m | 3.6m | 56mm | 48mm | |
| 2.2m | 4.0m | 56mm | 48mm | |
| 2.5m | 4.5m | 56mm | 48mm | |
| 2.8m | 5.0m | 56mm | 48mm | |
| 3.0m | 5.0m | 56mm | 48mm | |
| 3.5m | 6.0m | 56mm | 48mm | |
| Surface treatment | Spraying, powder spraying, electro-galvanizing, hot-dip galvanizing | |||
| Other specifications can be customized as per your requirements. | ||||
| Middle Eastern and German-style steel support specifications | ||||
|---|---|---|---|---|
| Wall thickness | Min | Max | Outer pipe diameter | Inner pipe diameter |
| 1.5 - 3.5mm | 1.7m | 3.0m | 60mm | 48mm |
| 1.8m | 3.2m | 60mm | 48mm | |
| 2.0m | 3.5m | 60mm | 48mm | |
| 2.0m | 3.6m | 60mm | 48mm | |
| 2.2m | 4.0m | 60mm | 48mm | |
| 2.5m | 4.5m | 60mm | 48mm | |
| 2.8m | 5.0m | 60mm | 48mm | |
| 3.0m | 5.0m | 60mm | 48mm | |
| 3.5m | 6.0m | 60mm | 48mm | |
| Surface treatment | Spraying, powder spraying, electro-galvanizing, hot-dip galvanizing | |||
| Other specifications can be customized as per your requirements. | ||||
Result: Achieved stable foundation pit shoring with zero safety incidents and reduced overall temporary support cost by 18%.
Depending on size and thickness, each pillar can safely bear 30-60 kN. For foundation pits or heavy concrete pours, we recommend reinforced heavy-duty pillars.
With a galvanized surface treatment and proper maintenance, the pillar can be reused over 200 times, with a service life of 8-10 years.
Standard adjustable ranges include 1.6-3.0 meters, 2.0-3.6 meters, and 2.5-4.0 meters. Custom lengths, plate sizes, and thicknesses can be customized based on project requirements.

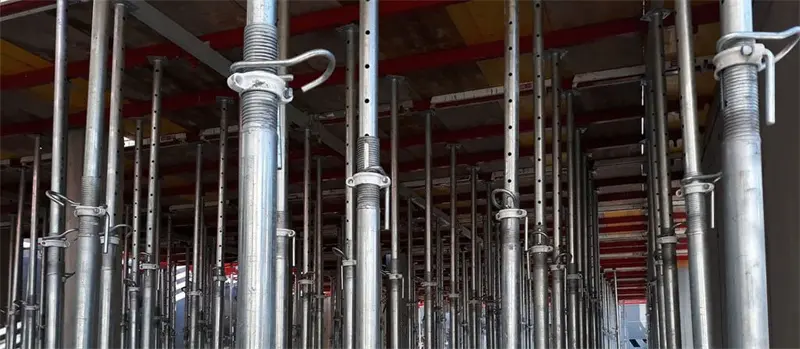

Yes. Heavy-duty pillars combined with surrounding beams are widely used in foundation pit support, underground garages, and temporary pit support.

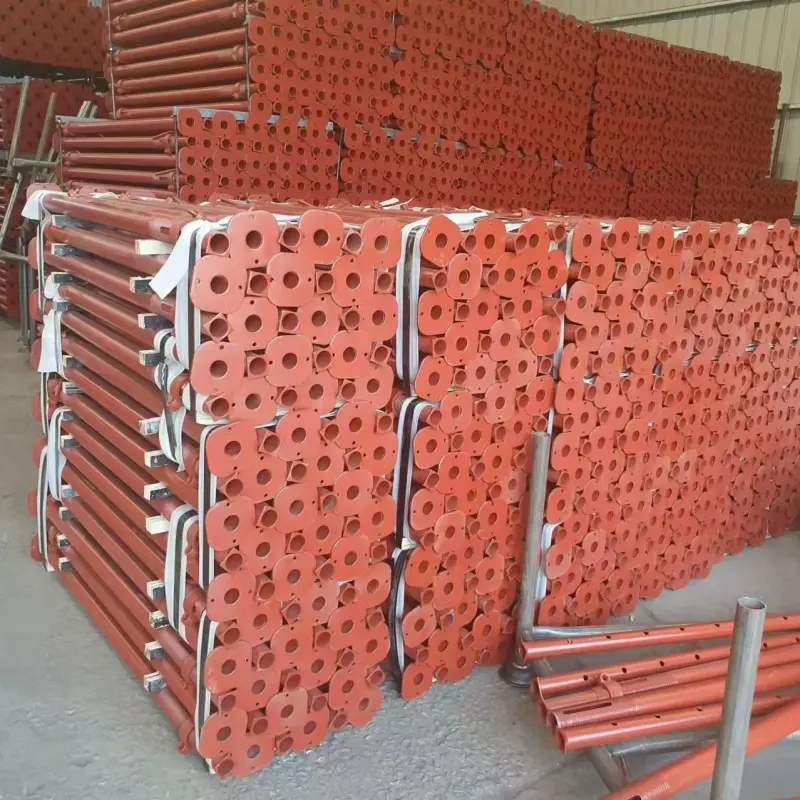

Options include hot-dip galvanizing, powder coating, and painting. Galvanized stanchions are best suited for long-term use or in humid/coastal environments.
Steel props are stronger, more reusable, and more precise. Compared to wooden stanchions, steel stanchions reduce material waste by 20-30% and labor costs by 25-35%.
