The Safe & Certified Frame Scaffolding System is designed to meet the highest international safety standards, fully compliant with OSHA (Occupational Safety and Health Administration) and EN (European Norm) regulations. Manufactured with premium-grade steel and precision welding, this system delivers exceptional load-bearing capacity and long-term durability.
Its modular design allows for fast assembly and disassembly, reducing labor time and increasing efficiency on-site. Equipped with safety locks, guardrails, and anti-slip platforms, the system ensures maximum worker protection during construction, renovation, or industrial applications.
Ideal for contractors who prioritize safety, reliability, and compliance, this frame scaffolding provides peace of mind while meeting global project requirements.

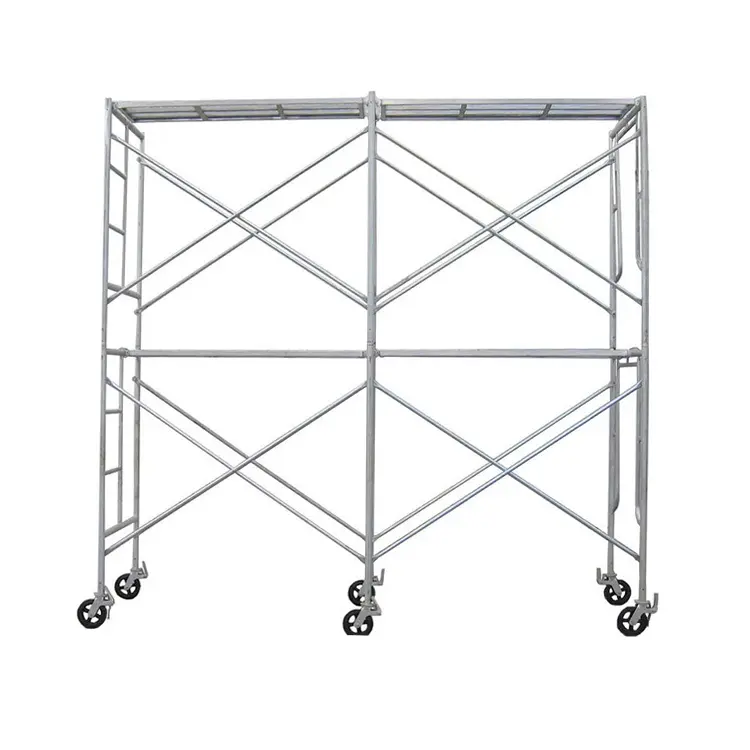

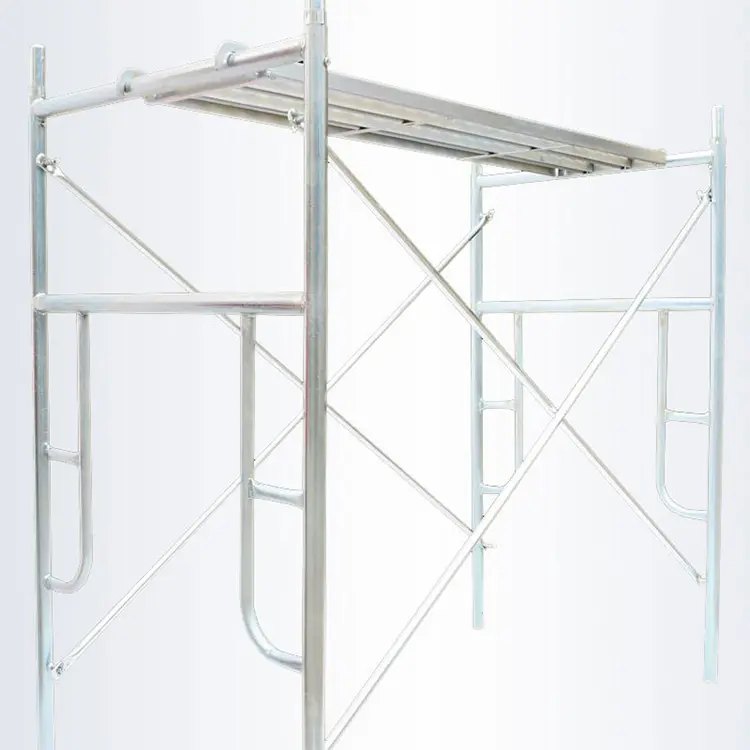

The H-shaped frame design distributes weight evenly and provides excellent lateral stability. The cross braces lock securely in place, preventing sway and minimizing risk of collapse during use.
Our scaffolding comes standard with full guardrail systems at every working level, minimizing fall risk. Toe boards prevent tools and materials from accidentally falling off platforms.
To accommodate uneven ground, adjustable base plates allow for quick leveling, ensuring that the entire scaffold is stable and firmly seated.
Work platforms feature a textured surface or anti-slip coating to prevent slips, even in wet or dusty conditions.
Before shipping, all scaffolding components undergo stringent static and dynamic load tests to ensure they withstand forces greater than those encountered on site, ensuring a significant safety margin.
| Product Name | Scaffold Vertical Bars | Scaffold Horizontal Bars | Product Name | Scaffold Vertical Bars | Scaffold Horizontal Bars |
|---|---|---|---|---|---|
| 762×1700mm Eight-shape frame Scaffold |
φ42×2.2mm | φ25×1.5mm | 1219×1524mm Frame scaffold |
φ42×2.4mm | φ25×1.5mm |
| φ42×2.0mm | φ25×1.5mm | φ42×2.2mm | φ25×1.5mm | ||
| φ42×1.8mm | φ25×1.5mm | φ42×2.0mm φ42×1.8mm |
φ25×1.5mm φ25×1.5mm |
||
| 914×914mm Half rack frame scaffold |
φ42×2.2mm | φ25×1.5mm | 1219×1700mm Frame scaffold |
φ42×2.4mm | φ25×1.5mm |
| φ42×2.0mm φ42×2.2mm |
φ25×1.5mm φ42×2.0mm |
φ42×2.2mm φ42×2.0mm |
φ25×1.5mm φ25×1.5mm |
||
| φ42×2.4mm | φ25×1.5mm | φ42×1.8mm | φ25×1.5mm | ||
| 914×1700mm Frame scaffold |
φ42×2.2mm φ42×2.0mm |
φ25×1.5mm φ25×1.5mm |
1219×1930mm Frame scaffold |
φ42×2.4mm φ42×2.0mm |
φ25×1.5mm φ25×1.5mm |
| φ42×1.8mm | φ25×1.5mm | ||||
| φ42×2.0mm | φ42×2.0mm | φ42×1.8mm | φ25×1.5mm | ||
| 914×1700mm Ladder rack |
φ42×2.2mm φ42×2.0mm |
φ25×1.5mm φ25×1.5mm |
1219×1219mm Half rack frame scaffold |
φ42×2.0mm | φ25×1.5mm |
| φ42×1.8mm φ42×2.0mm |
φ25×1.5mm φ12×2.0mm |
φ42×2.2mm | φ25×1.5mm | ||
| 1219×914mm Half rack frame scaffold |
φ42×2.0mm φ42×1.8mm |
φ42×2.0mm φ42×1.8mm |
1219×1700mm Ladder rack |
φ42×2.0mm φ42×1.8mm |
φ25×1.5mm φ25×1.5mm |
| φ42×2.2mm | φ42×2.0mm | φ42×2.2mm | φ42×2.0mm | ||
| 1219×1930mm Ladder rack |
φ42×2.0mm φ42×2.2mm |
φ25×1.5mm φ42×2.0mm |
|||
| φ42×2.0mm | φ25×1.5mm |
Painted panels: Avoid sharp impacts, regularly inspect peeling areas and touch up promptly. Use environmentally friendly water-based paint to reduce VOCs.
Galvanized panels: Clean thoroughly during initial installation. Avoid strong acids or alkalis. Minor scratches do not require treatment (the zinc layer is self-protecting).
