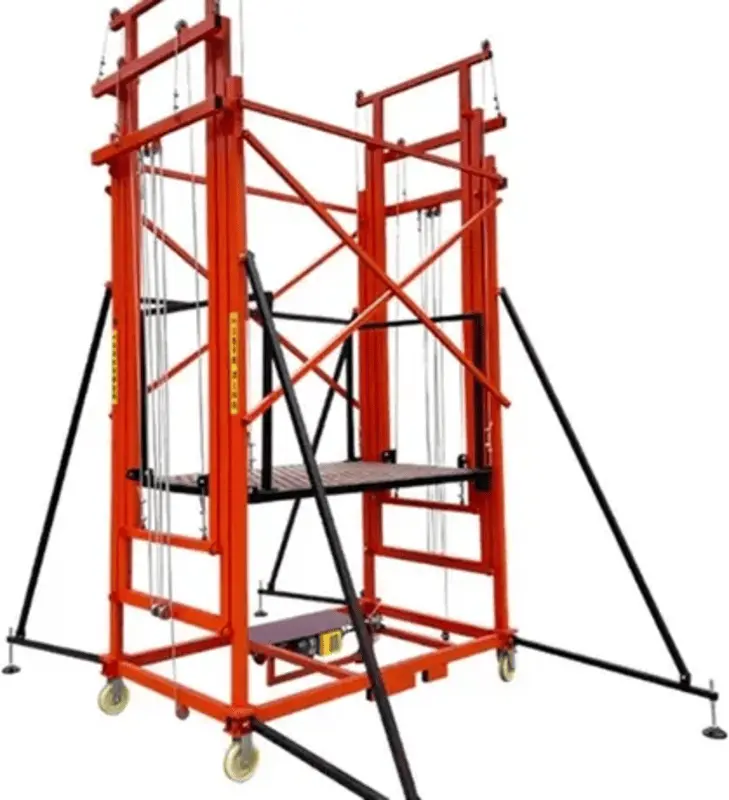

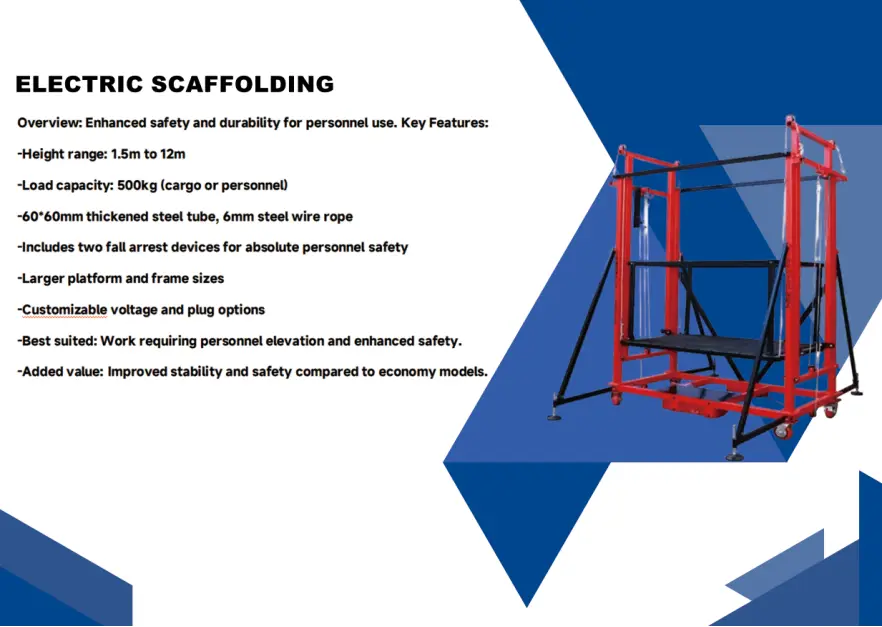

Electric scaffolding is a powered lifting platform designed to raise and lower workers and materials safely during construction, maintenance, or installation tasks. Unlike traditional manual scaffolding, it uses electric motors or hoists to adjust height efficiently, reducing labor intensity and improving work efficiency. These systems are often made of aluminum or steel, equipped with safety locks, guardrails, and adjustable bases, making them suitable for high-rise projects, façade works, and interior renovations.
| Type | Overall Dimensions (m) | Platform Size | Load (Kg) |
|---|---|---|---|
| 1.5m in two sections | 1.7*0.9*1.4 | 1290*760 mm | 500 |
| 2m in two sections | 1.7*0.9*1.6 | 1290*760 mm | 500 |
| 3m in two sections | 1.7*0.9*2.3 | 1290*760 mm | 500-400 |
| 3m in three sections | 1.7*0.9*2.15 | 1290*760 mm | 500-350 |
| 4m in two sections | 1.75*0.95*2.8 | 1290*760 mm | 500-350 |
| 4m in three sections | 1.75*0.95*2.15 | 1290*760 mm | 500-350 |
| 4m in four sections | 1.75*1.1*1.9 | 1290*760 mm | 500-300 |
| 5m in three sections | 1.75*0.95*2.55 | 1290*900 mm | 500-300 |
| 5m in four sections | 1.75*1.1*2.18 | 1290*760 mm | 500-300 |
| 6m in three sections | 1.75*0.95*3.0 | 1290*900 mm | 500-260 |
| 6m in four sections | 1.75*1.1*2.55 | 1800*1060 mm | 500-260 |
| 7m in three sections | 2.25*1.25*3.3 | 1800*1060 mm | 500-260 |
| 7m in four sections | 2.25*1.25*2.8 | 1800*1060 mm | 500-230 |
| 8 meters in three sections | 2.25*1.25*3.8 | 1800*1060 mm | 500-220 |
| 8 meters in four sections | 2.25*1.25*3.2 | 1800*1060 mm | 500-210 |
| 9 meters in four sections | 2.25*1.25*3.5 | 1800*1060 mm | 500-200 |
| 10 meters in four sections | 2.25*1.25*3.8 | 1800*1060 mm | 500-200 |
| 12 meters in five sections | 2.25*1.4*3.4 | 1800*1200 mm | 500-200 |

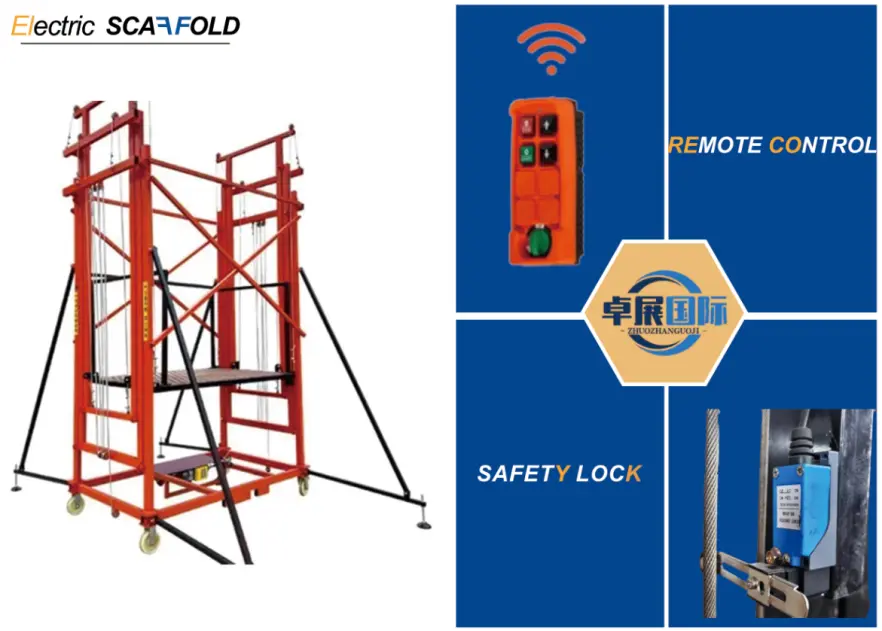

Equipped with safety locks, limit switches, and anti-tilt devices to ensure safe operation at any height.

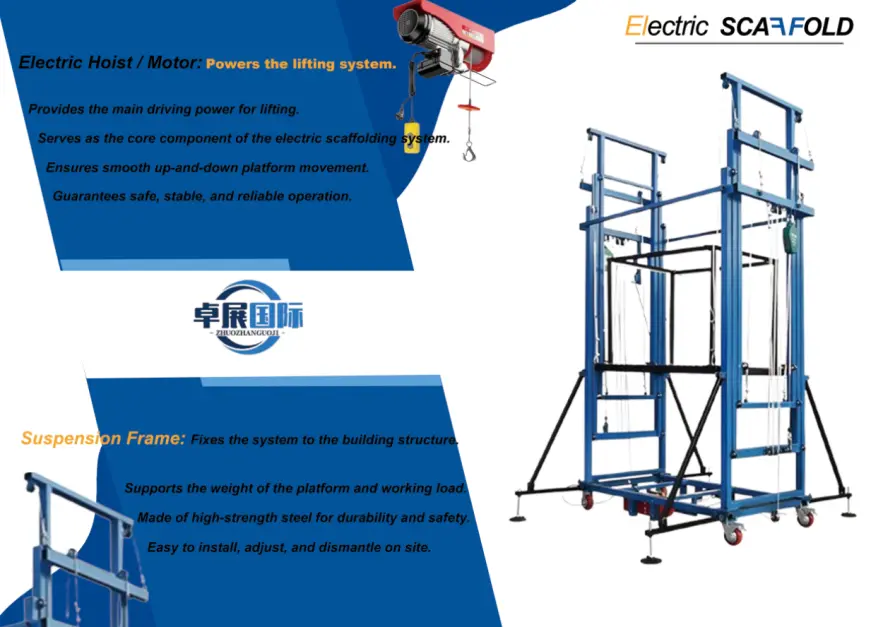

Uses a high-efficiency electric motor for stable power output and lower energy consumption.
Modular structure allows quick assembly, disassembly, and convenient maintenance.
Ideal for exterior wall construction, decoration, glass installation, and maintenance.

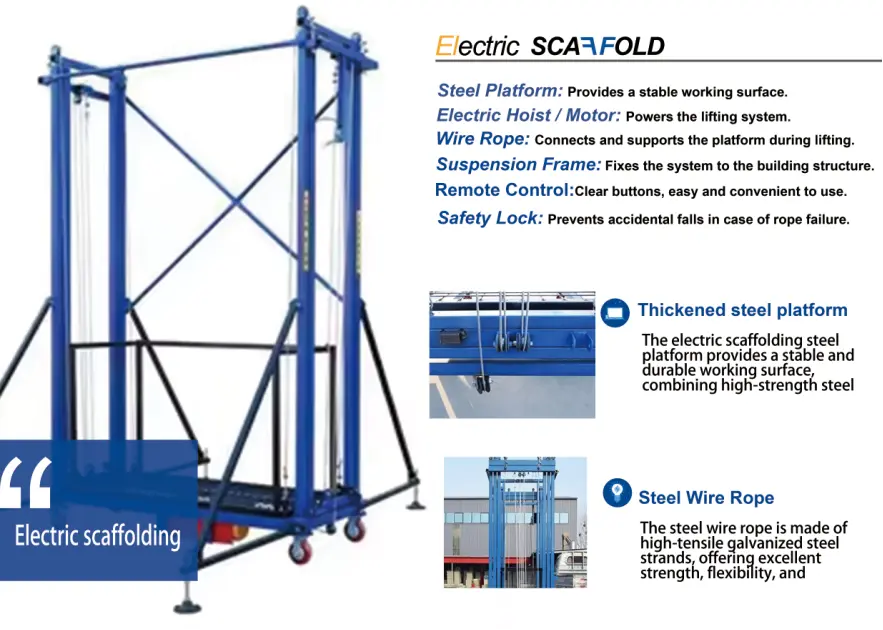

Built with high-strength steel and anti-rust coating, ensuring long-lasting durability and excellent load capacity.
Smooth lifting system with accurate speed regulation for safe and steady operation.
