ODM High-Capacity Bay Brace for Ringlock Scaffold Stabilization Factory, Supplier

Heavy-duty bay brace engineered for Ringlock scaffolding systems, providing critical diagonal support to enhance structural rigidity and prevent lateral deformation.
Constructed from Grade S355JR carbon steel with hot-dip galvanized coating (≥75μm), ensuring corrosion resistance in coastal, industrial, and high-humidity environments.
Precisely angled design (45°/60° adjustable) optimizes load distribution, supporting vertical loads up to 20kN and horizontal shear forces up to 8kN.
Tool-free installation via integrated wedge-lock connectors, compatible with 48.3mm and 60.3mm Ringlock vertical standards and ledger beams.

Product Description

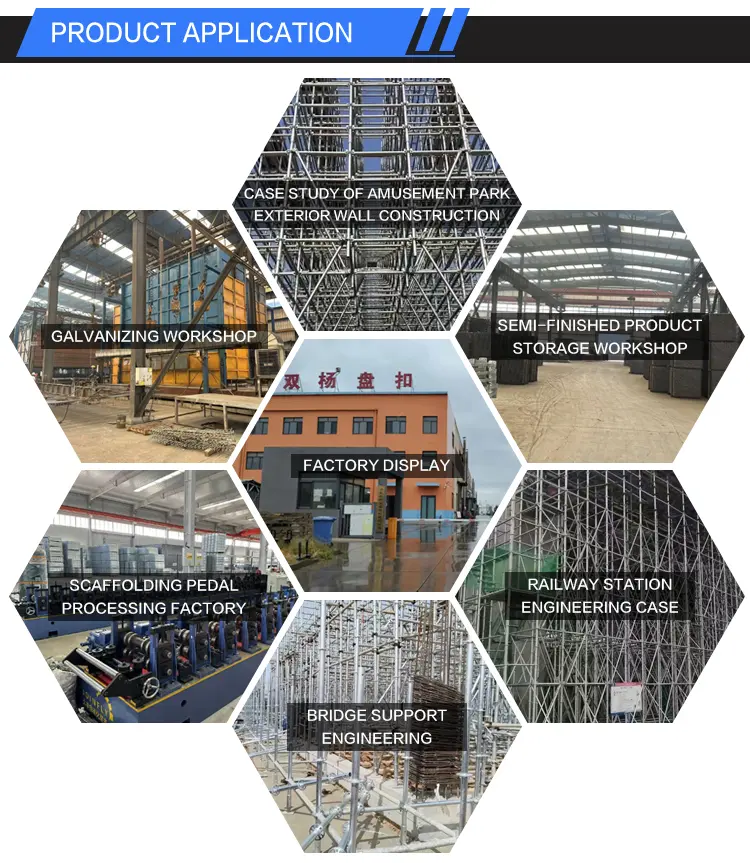

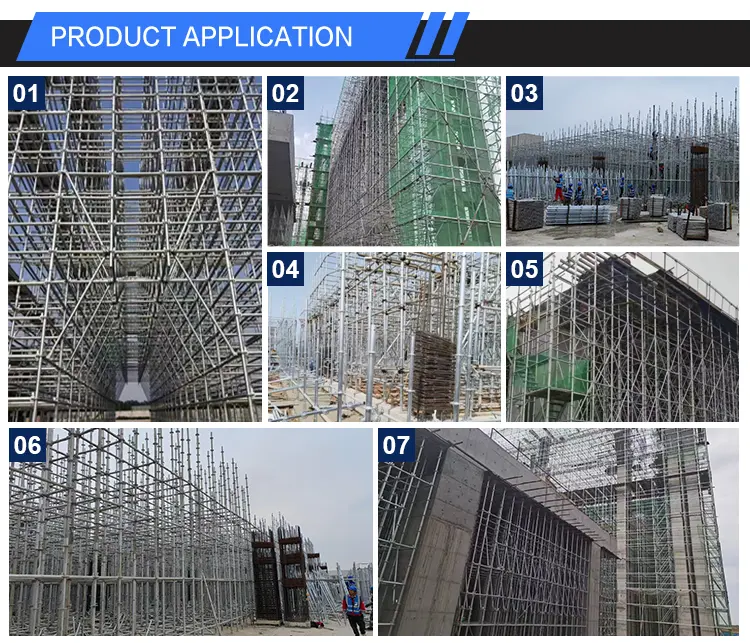

Applications

Skyscraper & Formwork

Essential for stabilizing multi-tier Ringlock scaffolding in skyscraper construction, bridge piers, and tunnel formwork projects.

Industrial Facilities

Used to reinforce temporary access platforms in power plants, shipyards, and oil refineries where lateral stability is paramount.

Modular Setups

Ideal for modular stage setups in event venues, stadiums, and exhibition halls requiring rapid assembly and disassembly.

Technical Specifications

Technical Specifications Diagram

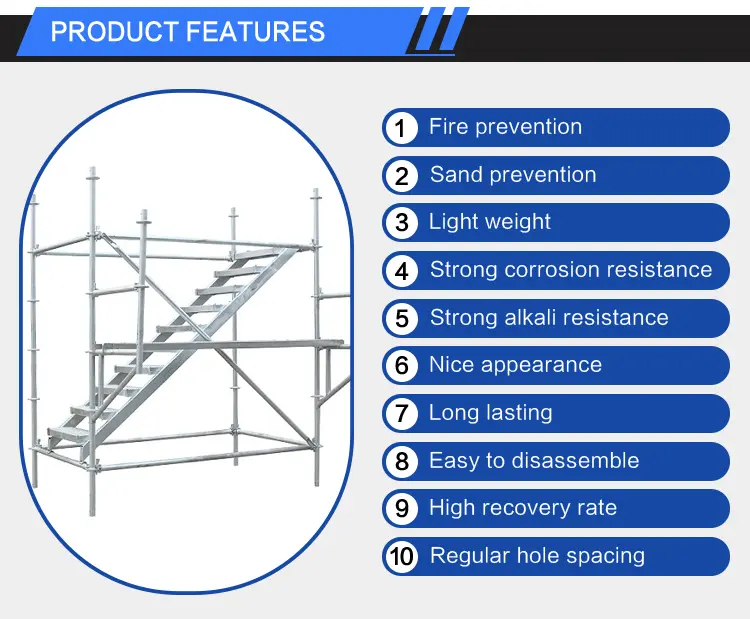

Design Features

Instant Locking: Hammer-driven wedge design ensures one-time fixation without tools, reducing assembly time by 50%.
Anti-Slip Grip: Serrated contact surfaces prevent tube slippage under heavy loads or lateral forces.
Durability: Heat-treated steel withstands extreme temperatures (-50°C to 200°C) and UV exposure.

Industries & Use Cases

Civil Engineering

Critical for high-rise building frameworks, bridge maintenance, and seismic-resistant structures.

Energy Sector

Deployed in wind turbine assembly, nuclear facility scaffolding, and pipeline support systems.

Event Construction

Provides stability for temporary stages, lighting rigs, and audience platforms in large venues.

Quality Assurance

Rigorous testing includes cyclic load simulation (50,000 cycles), salt spray testing (2,000 hours), and weld integrity checks.
Certifications: CE, UKCA, ISO 9001:2015, and EN 10219-1 for material compliance.
OEM services available for custom lengths, coatings, and bulk packaging with traceable batch codes.

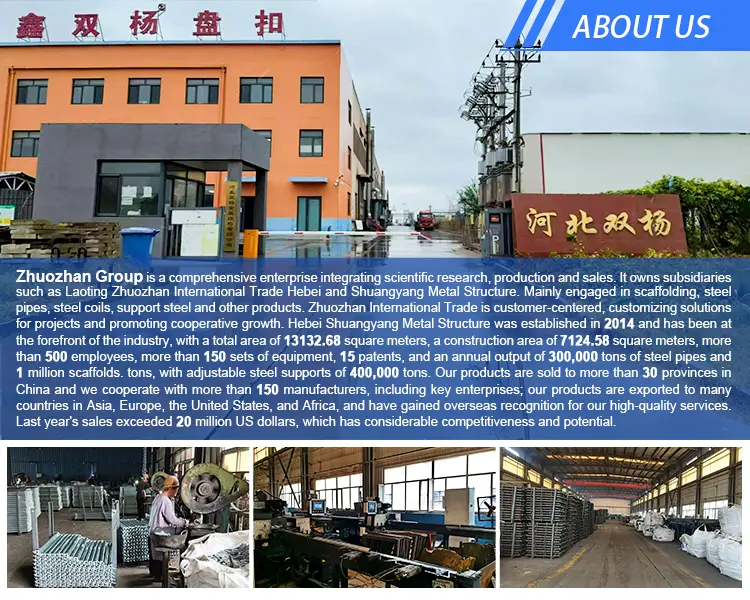

Manufacturing Capability and Brand Strength

We are a comprehensive enterprise integrating scientific research, production, and sales. Mainly engaged in scaffolding, steel pipes, steel coils, support steel, and other related products. Established in 2014, our manufacturing base has been at the forefront of the industry, covering a total area of 13,132.68 square meters with a construction footprint of 7,124.58 square meters. Supported by more than 500 employees, over 150 sets of advanced equipment, and holding 15 patents, we achieve an annual output of 300,000 tons of steel pipes, 1 million tons of scaffolding, and 400,000 tons of adjustable steel supports. Our products are widely distributed across more than 30 provinces domestically, collaborating with over 150 manufacturers. Additionally, our global footprint extends to key markets in Asia, Europe, the Americas, and Africa, earning strong international recognition. With annual sales exceeding 20 million USD, we maintain strong competitiveness and growth potential.

Frequently Asked Questions

What are the primary applications of Ringlock scaffolding?
Ringlock scaffolding is highly versatile and is primarily used for multi-tier support in high-rise buildings, bridge piers, tunnel formwork, refineries, power plants, shipyards, and modular setups for stage and stadium configurations.
How does the wedge-locking system improve construction efficiency?
The instant wedge-locking design relies on a hammer-driven system. This eliminates the need for loose fasteners and tools, optimizing assembly times by up to 50% compared to traditional tube and clamp systems.
Can these scaffolding components withstand extreme temperatures?
Yes. Built with heat-treated high-durability steel, our scaffolding components are engineered to withstand extreme thermal conditions ranging from -50°C up to 200°C and maintain UV degradation resistance.
What certifications and safety compliance standards do you adhere to?
Our products are strictly certified to international quality standards, including ISO 9001:2015, CE, UKCA, and EN 10219-1 for material compliance and structural integrity.
Do you offer OEM or custom fabrication options?
Yes, we provide full OEM support, offering customization for sizes, protective coatings, specialized packaging, and detailed batch codes for batch traceability.
What does your quality testing process involve?
Every batch undergoes cyclic load simulations (up to 50,000 cycles), 2,000 hours of salt spray corrosion tests, and ultrasonic weld integrity inspections to ensure safety and longevity on site.
