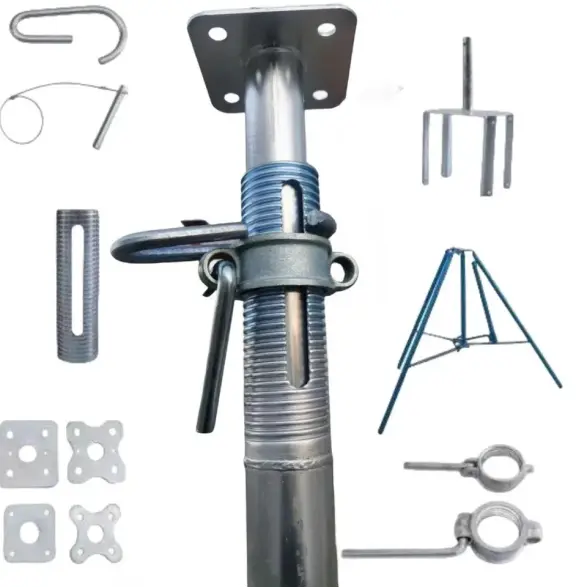

Safety is not just a promise—it's a standard. Our steel props for slab formwork and concrete support are manufactured from high-strength Q235/Q345 steel and designed to withstand heavy loads under the most demanding conditions. Each prop is precision-threaded for smooth adjustment, galvanized or powder-coated for corrosion resistance, and tested to meet international safety certifications.
From residential buildings to industrial facilities, our certified shoring props deliver consistent performance, ensuring every project stands on a foundation of safety and reliability.
| Italian Steel Support | ||||
| Wall Thickness | Min | Max | Outer Pipe Diameter | Inner Pipe Diameter |
| 1.5–3.5mm | 1.7m | 3.0m | 56mm | 48mm |
| 1.8m | 3.2m | 56mm | 48mm | |
| 2.0m | 3.5m | 56mm | 48mm | |
| 2.0m | 3.6m | 56mm | 48mm | |
| 2.2m | 4.0m | 56mm | 48mm | |
| 2.5m | 4.5m | 56mm | 48mm | |
| 2.8m | 5.0m | 56mm | 48mm | |
| 3.0m | 5.0m | 56mm | 48mm | |
| 3.5m | 6.0m | 56mm | 48mm | |
| Surface Treatment | Spraying, Powder Spraying, Electro-Galvanizing, Hot-Dip Galvanizing | |||
| Other specifications can be customized as per your requirements. | ||||
| Middle Eastern and German-Style Steel Support Specifications | ||||
| Wall Thickness | Min | Max | Outer Pipe Diameter | Inner Pipe Diameter |
| 1.5–3.5mm | 1.7m | 3.0m | 60mm | 48mm |
| 1.8m | 3.2m | 60mm | 48mm | |
| 2.0m | 3.5m | 60mm | 48mm | |
| 2.0m | 3.6m | 60mm | 48mm | |
| 2.2m | 4.0m | 60mm | 48mm | |
| 2.5m | 4.5m | 60mm | 48mm | |
| 2.8m | 5.0m | 60mm | 48mm | |
| 3.0m | 5.0m | 60mm | 48mm | |
| 3.5m | 6.0m | 60mm | 48mm | |
| Surface Treatment | Spraying, Powder Spraying, Electro-Galvanizing, Hot-Dip Galvanizing | |||
| Other specifications can be customized as per your requirements. | ||||

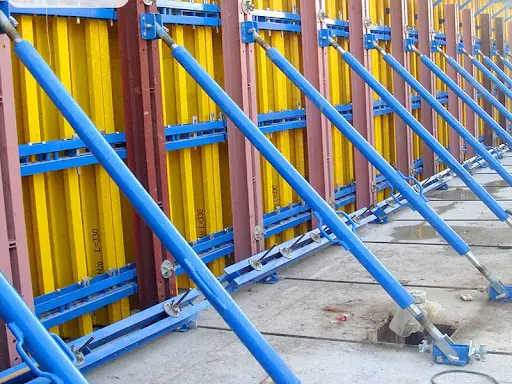

Project Location: Guangzhou, China
Project Timeline: March 2023 – December 2023
Project Overview:
During the construction of a metro line, a foundation pit excavation of 18m depth and 120m length was required. The site was located in a high-traffic urban district, with complicated soil layers and strict demands for construction safety and efficiency.
Our Solution:
We supplied 2,500 sets of heavy-duty certified steel props to support the deep foundation pit and ensure stability during excavation and continuous concrete pouring. Each prop was made of Q355B high-strength steel, featuring anti-slip adjustment holes for quick and safe installation.
Implementation:
