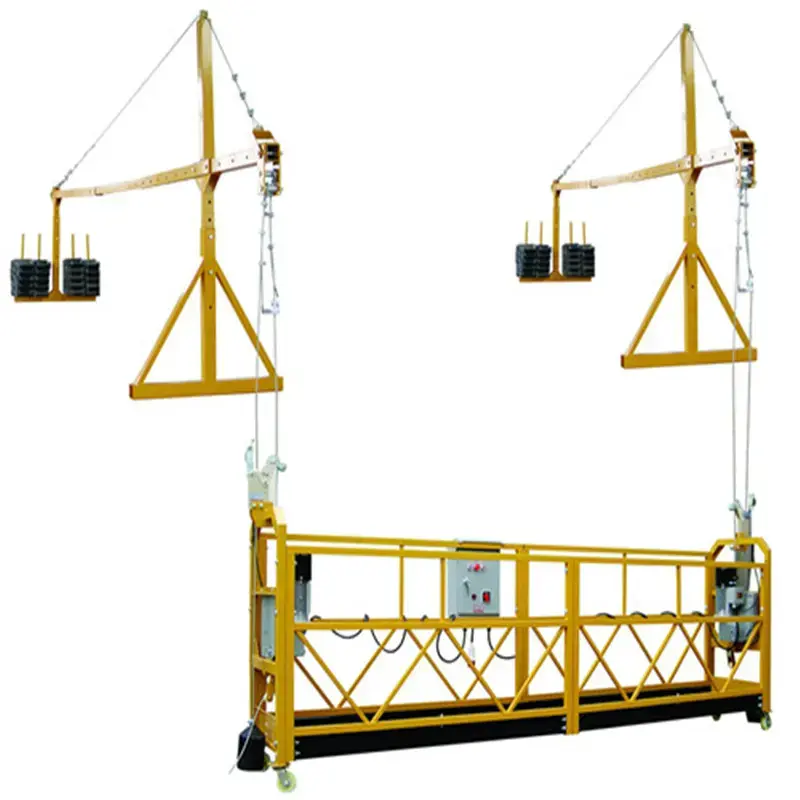

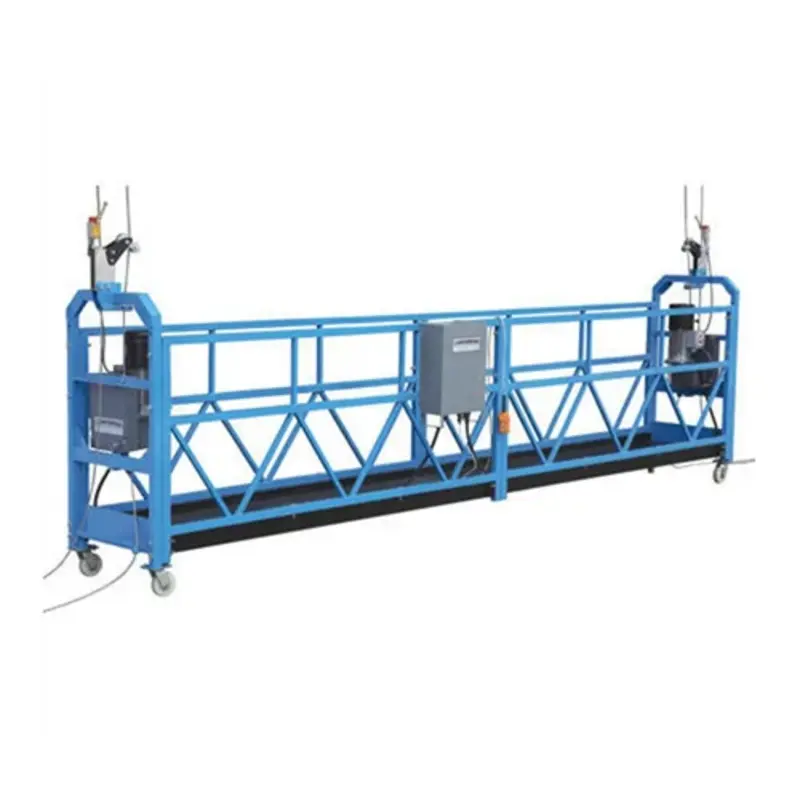

Electric suspended platforms are a type of modern aerial work platform widely used in high-rise building exterior wall construction, curtain wall installation, painting, cleaning, and maintenance. Supported by a roof-mounted suspension mechanism, the platform is driven up and down by an electric hoist, providing workers with a safe, stable, and efficient working environment.
Electric suspended platforms used in construction typically consist of a work platform, support frame/guardrail, suspension system, hoist, safety lock, electrical control box, safety rope, and wire rope. Their scientifically designed structure makes the product easy to assemble and operate.
Equipped with dual safety locks and overload protection for secure operation.
Made of high-strength steel or aluminum alloy with anti-corrosion surface treatment.
Modular design allows quick installation and convenient maintenance.
Electric hoist ensures smooth, steady, and low-noise operation.
Voltage, platform length, and material can be customized.
Suitable for façade works, glass installation, and exterior cleaning.
| Model | Rated Load | Platform Length | Lifting Speed | Hoist Model | Motor Power | Main Materials | Typical Applications |
|---|---|---|---|---|---|---|---|
| ZLP250 | 250 kg | 2.5 m | 9–11 m/min | LTD2.5 | 0.8 kW × 2 | Steel/ Aluminum Alloy | Minor repairs and decorations |
| ZLP500 | 500 kg | 5.0 m | 9–11 m/min | LTD5.0 | 1.1 kW × 2 | Steel/ Aluminum Alloy | Exterior wall coating, small curtain wall |
| ZLP630 | 630 kg | 6.0 m | 9–11 m/min | LTD6.3 | 1.5 kW × 2 | Aluminum alloy / steel | The most common general-purpose type (exterior walls, cleaning, etc.) |
| ZLP800 | 800 kg | 7.5 m | 8–10 m/min | LTD8.0 | 1.8 kW × 2 | Steel/ Aluminum Alloy | Curtain wall installation, large-area decoration |
| ZLP1000 | 1000 kg | 7.5–10 m | 8–10 m/min | LTD10 | 2.2 kW × 2 | Steel structure | Heavy-duty construction, bridge and chimney maintenance |
In addition to the standard ZLP series, different manufacturers also offer customized models or enhanced versions to meet specific construction needs. For example:
Lightweight system with 250 kg rated load, ideal for small-scale maintenance and painting.
500 kg capacity, designed for medium-scale façade decoration and high-altitude installation.
Our most popular general-purpose model with 630 kg load capacity and high reliability.
Designed for heavy-duty applications, offering 800 kg load capacity and strong lifting power.
High-capacity 1000 kg load, engineered for industrial structures, bridges and chimneys.
Ideal for exterior wall installation, decoration, and painting.
Used for mounting and maintenance of glass façades.
Perfect for exterior cleaning and façade repair of high-rise buildings.
Enables safe access for bridge inspection and concrete surface work.
Suitable for chimney coating, tower maintenance, and steel works.
Applied in shipyards, power plants, and large-scale industrial sites.
All components including platforms, hoists, safety locks, and electrical parts are well packed with protective film and export-standard wooden or steel pallets to prevent damage during transportation.
Products are carefully arranged in containers to maximize space efficiency and ensure stability during shipment. Each item is clearly labeled for easy identification.
We provide worldwide shipping by sea, air, or land. Cooperating with reliable freight forwarders ensures safe and timely delivery to your destination.
Standard models are usually shipped within 15-20 working days after order confirmation, with customized orders delivered according to the production schedule.
